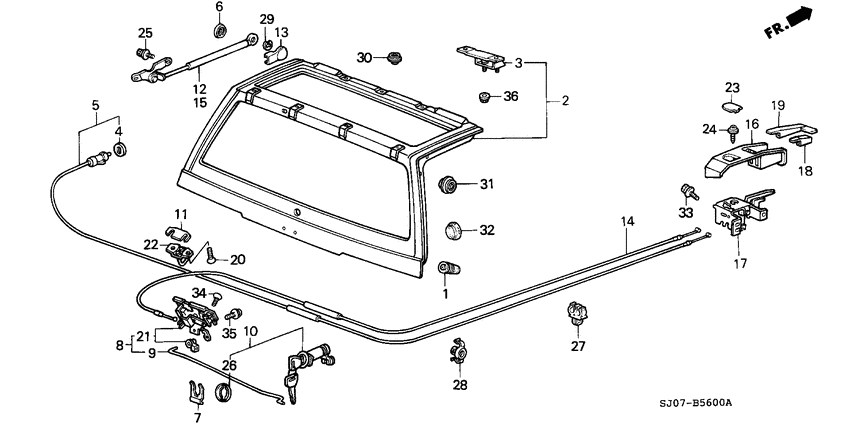

Tailgate (2D) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 3
- grade
- EX
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63511-SA5-003
Cushion
|
63511-SA5-003 |
— | ||
|
2
|
2
68100-SE1-G00ZZ
Tailgate assy.
|
68100-SE1-G00ZZ |
— | ||
|
3
|
3
68210-SE1-000ZZ
Hinge comp
|
68210-SE1-000ZZ |
— | ||
|
4
|
4
73219-693-951 SealFUEL LID OPENER (GREEN) |
73219-693-951 |
US $1.68 |
||
|
5
|
5
74411-SE1-003
Cable
|
74411-SE1-003 |
— | ||
|
6
|
6
74541-SE1-000
Seal
|
74541-SE1-000 |
— | ||
|
7
|
7
74711-SE1-000
Spring set
|
74711-SE1-000 |
— | ||
|
8
|
8
74800-SE1-003
Lock assy
|
74800-SE1-003 |
— | ||
|
9
|
9
74811-SE1-003
Rod
|
74811-SE1-003 |
— | ||
|
10
|
10
74812-SE1-013
Cylinder
|
74812-SE1-013 |
— | ||
|
11
|
11
74814-SE0-000
Shim
|
74814-SE0-000 |
— | ||
|
12
|
12
74820-SE1-013
Stay assy
|
74820-SE1-013 |
— | ||
| replacement | |||||
|
12
|
12
74820-SE1-023
Stay assy
|
74820-SE1-023 |
— | ||
|
13
|
13
74826-SE0-000 CoverOPEN STAY UPPER |
74826-SE0-000 |
US $3.29 |
||
|
14
|
14
74830-SE1-003
Cable
|
74830-SE1-003 |
— | ||
|
15
|
15
74870-SE1-013
Stay assy
|
74870-SE1-013 |
— | ||
|
16
|
16
74881-SE0-003ZA CoverTAILGATE REMOTE CONTROL *NH83L* |
74881-SE0-003ZA |
US $12.60 |
||
|
16
|
16
74881-SE0-003ZC CoverTAILGATE REMOTE CONTROL *B49L* |
74881-SE0-003ZC |
US $12.60 |
||
|
16
|
16
74881-SE0-003ZB
Cover
|
74881-SE0-003ZB |
— | ||
| replacement | |||||
|
16
|
16
74881-SE0-003ZH
Cover
|
74881-SE0-003ZH |
— | ||
|
17
|
17
74882-SE0-003
Control assy.
|
74882-SE0-003 |
— | ||
|
18
|
18
74883-SE0-013ZD Knob assyFUEL REMOTE CONTROL *NH83L* |
74883-SE0-013ZD |
US $6.44 |
||
|
18
|
18
74883-SE0-013ZB Knob assyFUEL REMOTE CONTROL *B49L* |
74883-SE0-013ZB |
US $6.44 |
||
|
18
|
18
74883-SE0-013ZA Knob assyFUEL REMOTE CONTROL *NH89L* |
74883-SE0-013ZA |
US $6.44 |
||
|
19
|
19
74884-SE0-013ZB Knob assyTRUNK REMOTE CONTROL *B49L* |
74884-SE0-013ZB |
US $8.82 |
||
|
19
|
19
74884-SE0-013ZA Knob assyTRUNK REMOTE CONTROL *NH89L* |
74884-SE0-013ZA |
US $8.82 |
||
|
19
|
19
74884-SE0-013ZD Knob assyTRUNK REMOTE CONTROL *NH83L* |
74884-SE0-013ZD |
US $8.82 |
||
|
20
|
20
75556-605-010 BoltLOCK STRIKER |
75556-605-010 |
from US $1.92 |
||
|
21
|
21
83301-SD2-003
Lock
|
83301-SD2-003 |
— | ||
|
22
|
22
83305-SD2-003
Striker
|
83305-SD2-003 |
— | ||
|
23
|
23
85513-SB0-003ZE
Lid
|
85513-SB0-003ZE |
— | ||
| replacement | |||||
|
23
|
23
85513-SB0-003ZP
Lid trunk*nh167l*
|
85513-SB0-003ZP |
— | ||
|
23
|
23
85513-SB0-003ZG
Lid
|
85513-SB0-003ZG |
— | ||
|
23
|
23
85513-SB0-003ZF
Lid
|
85513-SB0-003ZF |
— | ||
|
24
|
24
90101-SA4-000
Screw
|
90101-SA4-000 |
— | ||
| replacement | |||||
|
24
|
24
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
25
|
25
90322-SE0-000
Bolt-washer
|
90322-SE0-000 |
— | ||
|
26
|
26
90501-SE1-000
Packing
|
90501-SE1-000 |
— | ||
|
27
|
27
90691-SC5-003
Clip A
|
90691-SC5-003 |
— | ||
|
28
|
28
90692-SC5-003
Clip b
|
90692-SC5-003 |
— | ||
|
29
|
29
90755-SB2-000 E-ring6MM |
90755-SB2-000 |
from US $3.11 |
||
|
30
|
30
91631-SE0-003
Plug
|
91631-SE0-003 |
— | ||
|
31
|
31
91632-SE0-003
Plug
|
91632-SE0-003 |
— | ||
|
32
|
32
91633-SE0-003
Plug
|
91633-SE0-003 |
— | ||
|
33
|
33
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
US $0.59 |
||
| replacement | |||||
|
33
|
33
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
34
|
34
93600-060-161-A ScrewFLAT, 6X16 |
93600-060-161-A |
US $0.44 |
||
|
35
|
35
93893-060-160-8 Screw-washer6X16 |
93893-060-160-8 |
from US $0.59 |
||
|
36
|
36
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
