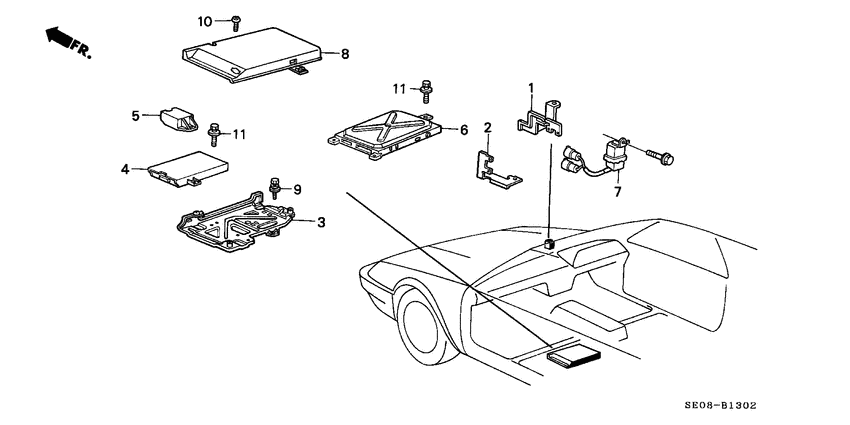

Control unit Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
32102-SE0-000 BracketCOUPLER HOLDER 00000000 - 0C200000 |
32102-SE0-000 |
US $6.30 |
||
|
3
|
3
36046-PH2-010
Stay comp
00000000 - 0C200000 |
36046-PH2-010 |
— | ||
|
4
|
4
36048-PH4-601
Control unit
|
36048-PH4-601 |
— | ||
|
5
|
5
36075-PH4-661
Control unit
|
36075-PH4-661 |
— | ||
|
7
|
7
39796-SE0-003
Relay assy
|
39796-SE0-003 |
— | ||
|
8
|
8
83305-SE3-010ZE CoverELECTRONIC CONTROL UNIT *YR89L* |
83305-SE3-010ZE |
US $30.72 |
||
|
8
|
8
83305-SE3-010ZA
Cover
00000000 - 0C200000 |
83305-SE3-010ZA |
— | ||
|
8
|
8
83305-SE3-010ZB CoverELECTRONIC CONTROL UNIT *B49L* |
83305-SE3-010ZB |
US $30.72 |
||
|
9
|
9
93493-060-120-8 Bolt-washer6X12 00000000 - 0C300000 |
93493-060-120-8 |
US $0.59 |
||
| replacement | |||||
|
9
|
9
93403-060-120-8 Bolt-washer6X12 00000000 - 0C300000 |
93403-060-120-8 |
from US $0.47 |
||
|
10
|
10
93891-050-120-7 Screw-washer5X12 |
93891-050-120-7 |
from US $0.44 |
||
|
11
|
11
95900-060-100-8 BoltFLANGE, 6X10 00000000 - 0C300000 |
95900-060-100-8 |
from US $0.52 |
||
| replacement | |||||
|
11
|
11
95701-060-100-8 BoltFLANGE, 6X10 00000000 - 0C300000 |
95701-060-100-8 |
from US $0.52 |
||
