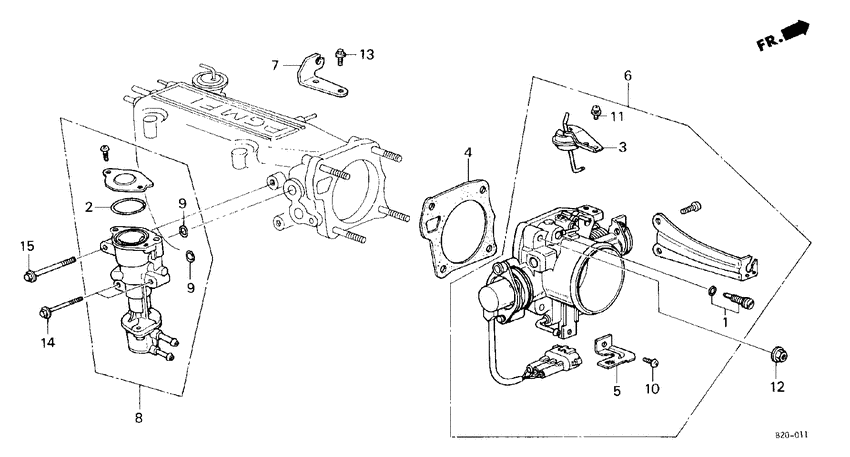

Throttle body (PGM-FI) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX-2.0I
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PH3-005 Screw set |
16016-PH3-005 |
US $6.58 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
from US $3.80 |
||
|
4
|
4
16176-PH3-000
Gasket
|
16176-PH3-000 |
— | ||
|
5
|
5
16179-PH3-005
Binder
|
16179-PH3-005 |
— | ||
|
6
|
6
16400-PJ0-763
Throttle Body Assy
|
16400-PJ0-763 |
— | ||
|
7
|
7
16411-PH3-000
Stay
|
16411-PH3-000 |
— | ||
|
8
|
8
16500-PJ0-611
Valve assy.
|
16500-PJ0-611 |
— | ||
|
9
|
9
91304-PE2-005 O-ring15.8X1.9 |
91304-PE2-005 |
US $2.77 |
||
|
10
|
10
93500-050-081-H ScrewPAN, 5X8 |
93500-050-081-H |
US $0.37 |
||
| replacement | |||||
|
10
|
10
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
11
|
11
93892-050-121-8 Screw-washer5X12 |
93892-050-121-8 |
US $0.44 |
||
| replacement | |||||
|
11
|
11
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
12
|
12
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
13
|
13
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
US $0.52 |
||
| replacement | |||||
|
13
|
13
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
14
|
14
95700-060-320-8 BoltFLANGE, 6X32 |
95700-060-320-8 |
US $0.59 |
||
| replacement | |||||
|
14
|
14
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
15
|
15
95700-060-400-8 BoltFLANGE, 6X40 |
95700-060-400-8 |
US $2.01 |
||
| replacement | |||||
|
15
|
15
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
