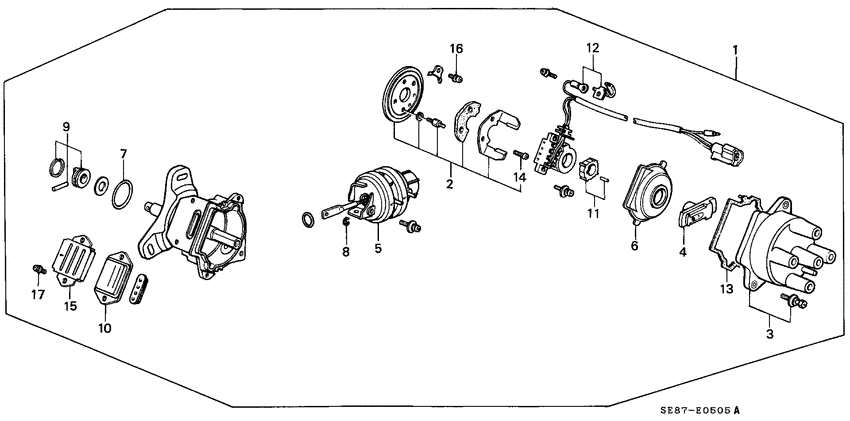

Distributor (DOHC) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PJ5-622 Distributor assyTD-06M) (TEC |
30100-PJ5-622 |
US $738.56 |
||
|
2
|
2
30101-PG7-006 Pick up assy.TEC |
30101-PG7-006 |
US $34.43 |
||
|
3
|
3
30102-PD2-006 Cap assyTEC |
30102-PD2-006 |
US $27.01 |
||
|
4
|
4
30103-PC3-822 HeadROTOR |
30103-PC3-822 |
US $9.24 |
||
|
5
|
5
30104-PJ5-622
Control assy.
|
30104-PJ5-622 |
— | ||
|
6
|
6
30107-PE1-006
Cover
|
30107-PE1-006 |
— | ||
|
7
|
7
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $3.15 |
||
|
8
|
8
30111-PA1-733
E-ring
|
30111-PA1-733 |
— | ||
|
9
|
9
30113-PG6-006
Coupling set
|
30113-PG6-006 |
— | ||
|
10
|
10
30120-PA6-921 Igniter unitNEC |
30120-PA6-921 |
US $226.56 |
||
|
11
|
11
30126-PD2-006
Rotor set
|
30126-PD2-006 |
— | ||
|
12
|
12
30131-PJ5-622
Harness assy
|
30131-PJ5-622 |
— | ||
|
13
|
13
30132-PA6-921
Gasket
|
30132-PA6-921 |
— | ||
|
14
|
14
30148-PA6-921
Screw-washer
|
30148-PA6-921 |
— | ||
|
15
|
15
30161-PB1-016
Case
|
30161-PB1-016 |
— | ||
|
16
|
16
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
US $0.44 |
||
| replacement | |||||
|
16
|
16
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
17
|
17
93892-040-141-8 Screw-washer4X14 |
93892-040-141-8 |
US $0.44 |
||
| replacement | |||||
|
17
|
17
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
