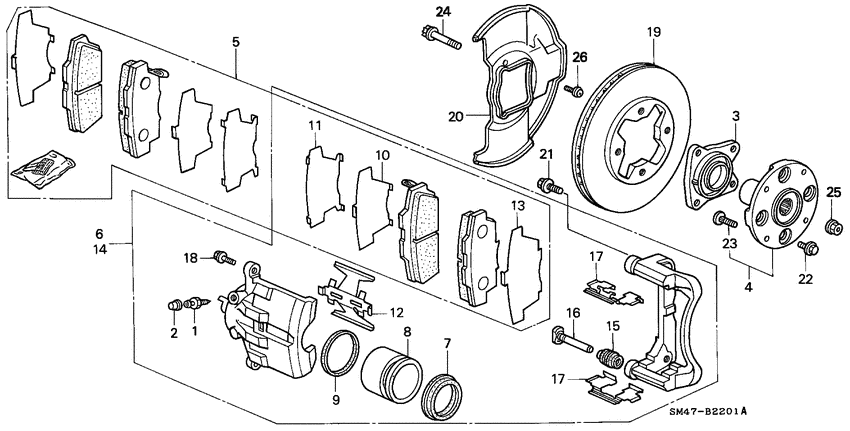

Front brake (2) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.2I
- abs
- +
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- catalyst
- +
- made in japan
- +
- sunroof (glass)
- +
- 4ws
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.63 |
||
|
2
|
2
43353-SA0-003
Cap
|
43353-SA0-003 |
— | ||
| replacement | |||||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.29 |
||
|
3
|
3
44200-SM4-013
Bearing assy
|
44200-SM4-013 |
— | ||
|
3
|
3
44200-SM4-018
Bearing assy
|
44200-SM4-018 |
— | ||
|
4
|
4
44600-SM4-020 Hub assyFR. |
44600-SM4-020 |
US $157.44 |
||
|
5
|
5
45022-SM4-G01 Pad setFR. |
45022-SM4-G01 |
US $131.84 |
||
|
6
|
6
45210-SM4-G04
Caliper assy
|
45210-SM4-G04 |
— | ||
|
7
|
7
45214-SM4-003 BootPISTON |
45214-SM4-003 |
US $10.74 |
||
|
8
|
8
45216-SM4-003 Piston |
45216-SM4-003 |
US $26.11 |
||
|
9
|
9
45217-SD4-003 SealPISTON |
45217-SD4-003 |
US $14.16 |
||
|
10
|
10
45225-SM4-G02
Shim a
|
45225-SM4-G02 |
— | ||
|
11
|
11
45226-SM4-G02
Shim b
|
45226-SM4-G02 |
— | ||
|
12
|
12
45227-SM4-003
Spring
|
45227-SM4-003 |
— | ||
|
13
|
13
45228-SM4-G02
Shim
|
45228-SM4-G02 |
— | ||
|
14
|
14
45230-SM4-G04
Caliper assy
|
45230-SM4-G04 |
— | ||
|
15
|
15
45234-SM4-003 BootPIN |
45234-SM4-003 |
US $4.34 |
||
|
16
|
16
45235-SM4-003 Pin |
45235-SM4-003 |
US $9.38 |
||
|
17
|
17
45237-SM4-G01
Retainer
|
45237-SM4-G01 |
— | ||
|
18
|
18
45240-SM4-003 BoltFLANGE, 10X24 |
45240-SM4-003 |
from US $1.85 |
||
|
19
|
19
45251-SM4-G01 DiskFR. BRAKE (15") |
45251-SM4-G01 |
US $189.44 |
||
|
20
|
20
45255-SM4-G01
Guard
|
45255-SM4-G01 |
— | ||
|
21
|
21
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
US $2.77 |
||
|
22
|
22
90114-SM4-000 BoltFLANGE, 10X20 |
90114-SM4-000 |
US $1.40 |
||
|
23
|
23
90163-SM4-003 BoltWHEEL (TOUKAI) |
90163-SM4-003 |
US $2.38 |
||
|
24
|
24
90164-SM4-003
Bolt
|
90164-SM4-003 |
— | ||
|
25
|
25
90305-SD4-003 NutSPINDLE (24MM) |
90305-SD4-003 |
US $7 |
||
|
26
|
26
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
