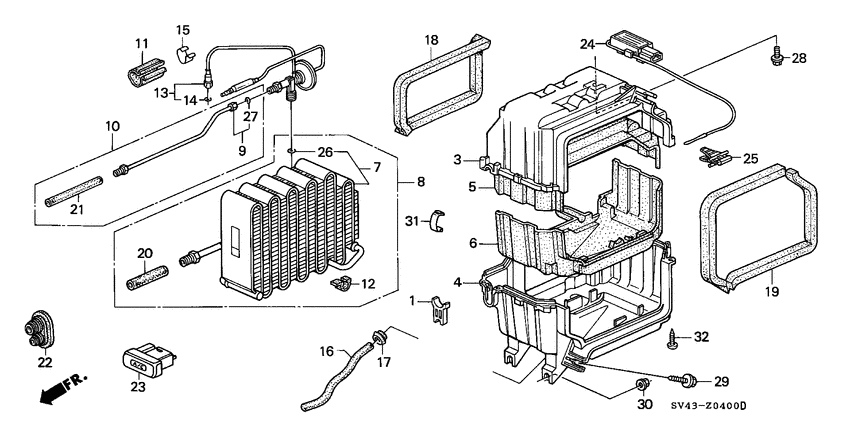

Cooling unit Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD
- Sales region
- General
- Engine
- F22B
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38625-SB2-000 HolderEVAPORATOR PIPE |
38625-SB2-000 |
US $2.45 |
||
|
3
|
3
80201-SV4-A00
Case
|
80201-SV4-A00 |
— | ||
|
4
|
4
80202-SV4-A00
Case
|
80202-SV4-A00 |
— | ||
|
5
|
5
80205-SV4-A00
Insulator
|
80205-SV4-A00 |
— | ||
|
6
|
6
80206-SV4-A00
Insulator
|
80206-SV4-A00 |
— | ||
|
8
|
8
80211-SV1-305
Evaporator comp.
|
80211-SV1-305 |
— | ||
|
9
|
9
80212-SV1-A11
Pipe
|
80212-SV1-A11 |
— | ||
|
11
|
11
80218-SR1-A20
Insulator
|
80218-SR1-A20 |
— | ||
|
13
|
13
80220-SV1-A11
Valve assy.
|
80220-SV1-A11 |
— | ||
|
14
|
14
80223-ST7-A11 O-ringFUJI KOKI AMERICA |
80223-ST7-A11 |
US $2.73 |
||
|
15
|
15
80225-SR3-000 Clamp |
80225-SR3-000 |
US $3.15 |
||
|
16
|
16
80271-SV4-000 HoseDRAIN |
80271-SV4-000 |
US $3.78 |
||
|
17
|
17
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
18
|
18
80286-SV4-A00
Seal
|
80286-SV4-A00 |
— | ||
|
19
|
19
80287-SV4-A00
Seal
|
80287-SV4-A00 |
— | ||
|
20
|
20
80288-SK7-A10
Insulator
|
80288-SK7-A10 |
— | ||
|
21
|
21
80289-SM1-A10
Insulator
|
80289-SM1-A10 |
— | ||
|
22
|
22
80380-SM4-G00
Grommet
|
80380-SM4-G00 |
— | ||
| replacement | |||||
|
22
|
22
80380-SF4-000
Grommet
|
80380-SF4-000 |
— | ||
|
23
|
23
80411-SV4-A01
Knob
|
80411-SV4-A01 |
— | ||
|
24
|
24
80430-SV4-003
Thermostat
|
80430-SV4-003 |
— | ||
|
24
|
24
80430-SV1-A11
Thermostat
|
80430-SV1-A11 |
— | ||
|
25
|
25
80566-SF1-941 ClipEVAPORATOR SENSOR |
80566-SF1-941 |
US $3.43 |
||
|
26
|
26
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
27
|
27
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
28
|
28
90139-SH3-003
Bolt-washer
|
90139-SH3-003 |
— | ||
|
29
|
29
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
30
|
30
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
31
|
31
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
32
|
32
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
