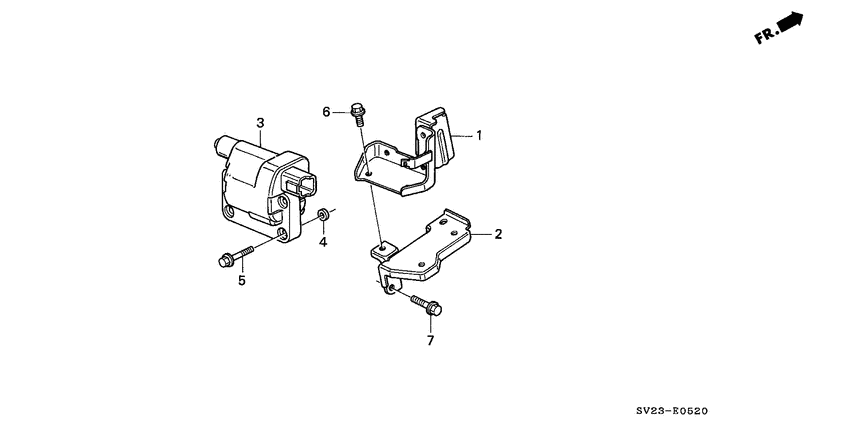

Ignition coil Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LX
- abs
- +
- area code
- KL
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30501-P0B-A00
Bracket
|
30501-P0B-A00 |
— | ||
|
2
|
2
30503-P0B-A00
Sub bracket comp.
|
30503-P0B-A00 |
— | ||
|
3
|
3
30520-PT9-A02
Coil comp
|
30520-PT9-A02 |
— | ||
|
4
|
4
90520-PH6-000 CollarIGNITION COIL |
90520-PH6-000 |
from US $2.80 |
||
|
5
|
5
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
6
|
6
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
||
|
7
|
7
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
