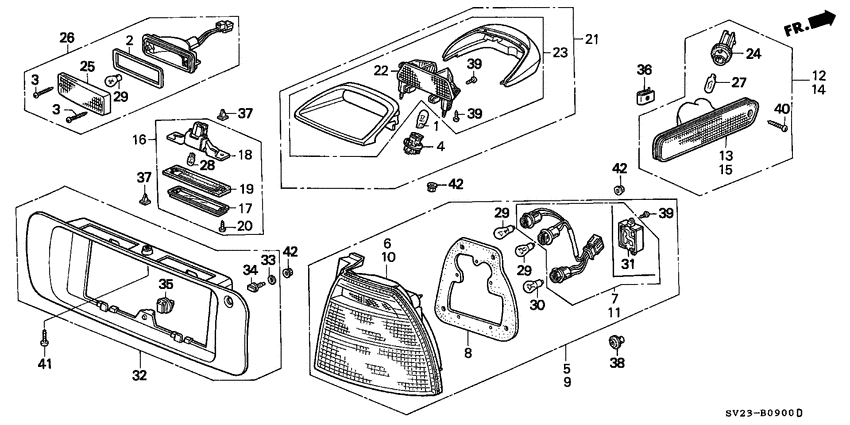

Taillight (1) Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LX
- abs
- +
- area code
- KL
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.52 |
||
|
4
|
4
33304-SV4-A01
Socket comp.
|
33304-SV4-A01 |
— | ||
|
5
|
5
33500-SV4-A01
Taillight assy.
|
33500-SV4-A01 |
— | ||
|
6
|
6
33501-SV4-A01
Lamp unit
|
33501-SV4-A01 |
— | ||
|
7
|
7
33502-SV4-A01
Socket comp.
|
33502-SV4-A01 |
— | ||
|
8
|
8
33503-SV4-A01
Gasket
|
33503-SV4-A01 |
— | ||
|
9
|
9
33550-SV4-A02
Taillight assy.
|
33550-SV4-A02 |
— | ||
|
10
|
10
33551-SV4-A01
Lamp unit
|
33551-SV4-A01 |
— | ||
|
11
|
11
33552-SV4-A02
Socket comp.
|
33552-SV4-A02 |
— | ||
|
12
|
12
33650-SV4-A01
Light assy
|
33650-SV4-A01 |
— | ||
|
13
|
13
33651-SV4-A01 Lamp compR. |
33651-SV4-A01 |
US $23.30 |
||
|
14
|
14
33655-SV4-A01
Light assy
|
33655-SV4-A01 |
— | ||
|
15
|
15
33656-SV4-A01
Lamp comp
|
33656-SV4-A01 |
— | ||
|
16
|
16
34100-SS0-003 Light assyLICENSE |
34100-SS0-003 |
US $31.10 |
||
|
17
|
17
34101-SS0-003
Lens
|
34101-SS0-003 |
— | ||
|
18
|
18
34102-SS0-003
Housing comp
|
34102-SS0-003 |
— | ||
|
19
|
19
34103-SS0-003
Seal
|
34103-SS0-003 |
— | ||
|
20
|
20
34104-SE3-A01
Screw
|
34104-SE3-A01 |
— | ||
|
21
|
21
34270-SV2-A01ZC
Light assy
|
34270-SV2-A01ZC |
— | ||
|
21
|
21
34270-SV2-A01ZB
Light assy
|
34270-SV2-A01ZB |
— | ||
|
21
|
21
34270-SV2-A01ZA
Light assy
|
34270-SV2-A01ZA |
— | ||
|
21
|
21
34270-SV2-A01ZD
Light assy
|
34270-SV2-A01ZD |
— | ||
|
22
|
22
34271-SV4-A01
Reflector comp.
|
34271-SV4-A01 |
— | ||
|
23
|
23
34274-SV2-A01ZB
Lamp unit *nh178l*
|
34274-SV2-A01ZB |
— | ||
|
23
|
23
34274-SV2-A01ZD
Lamp unit *y18l*
|
34274-SV2-A01ZD |
— | ||
|
23
|
23
34274-SV2-A01ZA
Lamp unit *g38l*
|
34274-SV2-A01ZA |
— | ||
|
23
|
23
34274-SV2-A01ZC
Lamp unit *yr147l*
|
34274-SV2-A01ZC |
— | ||
|
24
|
24
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
27
|
27
34901-SB0-671 Bulb12V 5W 3CP) (STANLEY |
34901-SB0-671 |
from US $1.82 |
||
|
28
|
28
34901-SE3-003 Bulb12V 8W |
34901-SE3-003 |
US $2.10 |
||
|
29
|
29
34903-634-671 Bulb12V27W |
34903-634-671 |
US $2.17 |
||
|
30
|
30
34906-SL0-A01 Bulb12V43/3CP) (STANLEY |
34906-SL0-A01 |
US $6.72 |
||
|
31
|
31
37540-SM4-003 SensorSTOP LAMP FAILURE |
37540-SM4-003 |
US $51.71 |
||
|
32
|
32
74890-SV4-V50ZH
Garnish assy
|
74890-SV4-V50ZH |
— | ||
|
32
|
32
74890-SV4-V50ZB
Garnish assy
|
74890-SV4-V50ZB |
— | ||
|
32
|
32
74890-SV4-V50ZD
Garnish assy
|
74890-SV4-V50ZD |
— | ||
|
32
|
32
74890-SV4-V50ZG
Garnish assy
|
74890-SV4-V50ZG |
— | ||
|
32
|
32
74890-SV4-V50ZA
Garnish assy
|
74890-SV4-V50ZA |
— | ||
|
32
|
32
74890-SV4-V50ZE
Garnish assy
|
74890-SV4-V50ZE |
— | ||
|
33
|
33
75523-SS0-000 PackingSEAL |
75523-SS0-000 |
US $0.98 |
||
|
34
|
34
75524-SS0-000 BoltSPECIAL, 5MM |
75524-SS0-000 |
US $2.60 |
||
|
35
|
35
75525-SD4-013 ClipRR. PANEL GARNISH |
75525-SD4-013 |
US $4.66 |
||
|
36
|
36
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
37
|
37
90521-SS0-003 GrommetSPECIAL SCREW (M4) (YELLOW) |
90521-SS0-003 |
US $1.82 |
||
|
39
|
39
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
40
|
40
93901-446G0 ScrewTAPPING, 4X25 |
93901-446G0 |
US $0.67 |
||
|
41
|
41
93903-444J0 ScrewTAPPING, 4X16 |
93903-444J0 |
US $0.67 |
||
|
42
|
42
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
