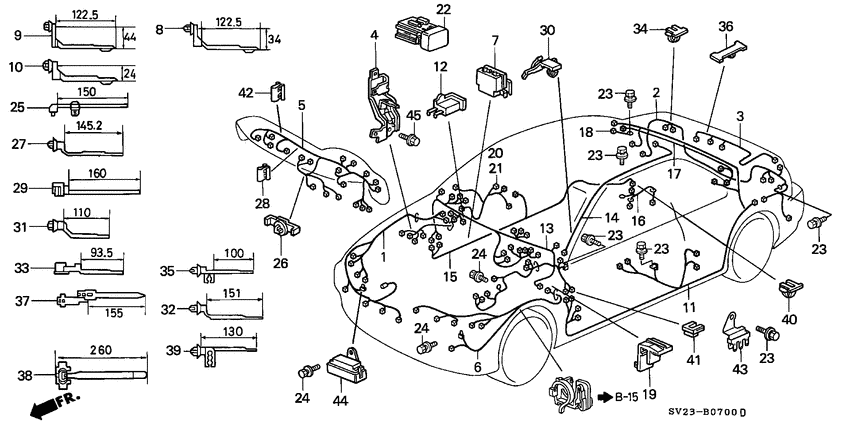

Wire harness Diagram Honda ACCORD
- Year
- 1994
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- F22B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LX
- abs
- +
- area code
- KL
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SV4-A00
Harness
|
32100-SV4-A00 |
— | ||
|
2
|
2
32108-SV4-A11
Harness
|
32108-SV4-A11 |
— | ||
|
3
|
3
32109-SV4-000
Cord
|
32109-SV4-000 |
— | ||
|
4
|
4
32112-P0A-A00
Stay comp
|
32112-P0A-A00 |
— | ||
|
5
|
5
32117-SV4-A11 HarnessINSTRUMENT WIRE |
32117-SV4-A11 |
US $258.56 |
||
|
6
|
6
32120-SV4-A00
Harness
|
32120-SV4-A00 |
— | ||
|
7
|
7
32131-SV4-003 CapCOUPLER (CP 2P, 3P) |
32131-SV4-003 |
US $4.90 |
||
|
8
|
8
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
9
|
9
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $4.14 |
||
|
10
|
10
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
11
|
11
32140-SV2-A11
Harness
|
32140-SV2-A11 |
— | ||
|
12
|
12
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $10.21 |
||
|
13
|
13
32150-SV4-A52
Harness
|
32150-SV4-A52 |
— | ||
|
13
|
13
32150-SV4-A50
Harness
|
32150-SV4-A50 |
— | ||
|
15
|
15
32160-SV2-A10
Harness
|
32160-SV2-A10 |
— | ||
|
16
|
16
32170-SV4-000
Cord
|
32170-SV4-000 |
— | ||
|
17
|
17
32202-SV2-A00
Cord
|
32202-SV2-A00 |
— | ||
|
19
|
19
32312-SM4-013 HolderCOUPLER |
32312-SM4-013 |
US $4.34 |
||
|
20
|
20
32751-SV2-A11 HarnessDRIVER DOOR WIRE RA044570 - |
32751-SV2-A11 |
US $189.44 |
||
|
20
|
20
32751-SV2-A10
Harness
00000000 - RA044569 |
32751-SV2-A10 |
— | ||
|
21
|
21
32752-SV2-A11
Harness
RA044450 - |
32752-SV2-A11 |
— | ||
|
21
|
21
32752-SV2-A10
Harness
00000000 - RA044449 |
32752-SV2-A10 |
— | ||
|
23
|
23
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
24
|
24
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.96 |
||
|
25
|
25
90649-SC2-003 BandWIRE HARNESS (NATURAL) (150MM) |
90649-SC2-003 |
from US $2.73 |
||
|
26
|
26
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
27
|
27
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
28
|
28
91547-SD2-000
Clip
|
91547-SD2-000 |
— | ||
|
33
|
33
91552-SS0-003 ClipWIRE HARNESS (M5) (BROWN) (93.5MM) |
91552-SS0-003 |
US $3.51 |
||
|
34
|
34
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.22 |
||
|
36
|
36
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
37
|
37
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
38
|
38
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
40
|
40
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
41
|
41
91587-SM4-003
Clip
|
91587-SM4-003 |
— | ||
|
44
|
44
91786-SR3-003 BarJOINT (10P) |
91786-SR3-003 |
US $6.72 |
||
|
45
|
45
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
