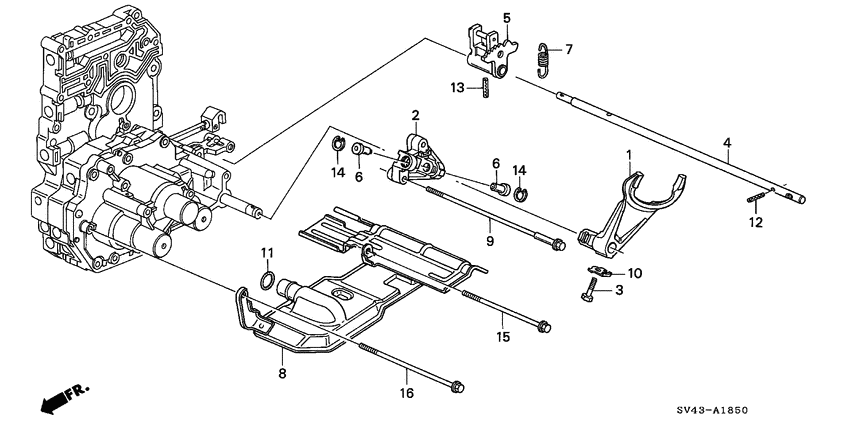

Atf strainer (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-P0Z-000
Fork
|
24111-P0Z-000 |
— | ||
|
2
|
2
24278-PX4-000 BaseSERVO DETENT |
24278-PX4-000 |
US $14.85 |
||
|
3
|
3
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
4
|
4
24411-P0Z-300
Shaft
|
24411-P0Z-300 |
— | ||
|
5
|
5
24420-P0Z-300
Lever comp
|
24420-P0Z-300 |
— | ||
|
6
|
6
24530-PN1-000
Sleeve comp.
|
24530-PN1-000 |
— | ||
|
7
|
7
24634-P0Z-000
Spring
|
24634-P0Z-000 |
— | ||
|
8
|
8
25420-P0Z-000
Strainer
|
25420-P0Z-000 |
— | ||
|
9
|
9
90004-P0X-000
Bolt
|
90004-P0X-000 |
— | ||
|
10
|
10
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
11
|
11
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
||
|
12
|
12
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
13
|
13
94305-50182 PinSPRING, 5X18 |
94305-50182 |
from US $0.81 |
||
|
14
|
14
94521-15000 CirclipINTERNAL, 15MM |
94521-15000 |
US $0.44 |
||
|
15
|
15
95701-060-900-8 BoltFLANGE, 6X90 |
95701-060-900-8 |
from US $0.89 |
||
|
16
|
16
95701-061-050-8 BoltFLANGE, 6X105 |
95701-061-050-8 |
from US $1.18 |
