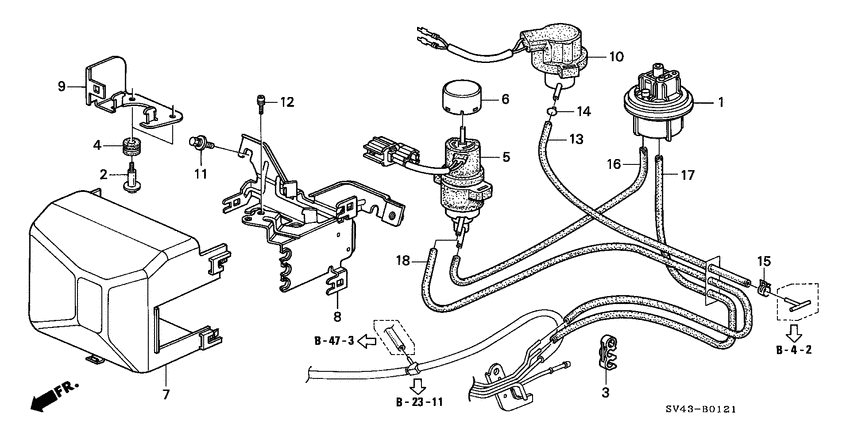

Egr control device (V6) Diagram Honda ACCORD
- Year
- 1997
- Model code
- ACCORD
- Sales region
- General
- Engine
- C27A
- transmission
- 4AT
- Number of doors
- 4
- grade
- V6 LX
- abs
- +
- area code
- KA
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17290-PY3-901
Valve assy.
|
17290-PY3-901 |
— | ||
|
2
|
2
36017-PM5-A01 Bolt dMOUNTING |
36017-PM5-A01 |
US $2.66 |
||
|
3
|
3
36024-PM1-G51 ClampTUBE, 7.5X3 |
36024-PM1-G51 |
US $5.32 |
||
|
4
|
4
36053-PM6-A01
Rubber
|
36053-PM6-A01 |
— | ||
|
5
|
5
36190-P0G-A01
Valve assy.
|
36190-P0G-A01 |
— | ||
|
6
|
6
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
7
|
7
36201-P0G-A01
Cover
|
36201-P0G-A01 |
— | ||
|
8
|
8
36233-P0G-A01
Stay comp
|
36233-P0G-A01 |
— | ||
|
9
|
9
36234-P0G-A01
Base
|
36234-P0G-A01 |
— | ||
|
10
|
10
36381-P0G-A01
Switch assy
|
36381-P0G-A01 |
— | ||
|
11
|
11
90146-SG0-000
Bolt-washer
|
90146-SG0-000 |
— | ||
|
12
|
12
93892-050-100-7 Screw-washer5X10 |
93892-050-100-7 |
from US $0.44 |
||
|
13
|
13
95001-453-306-0
Tube
|
95001-453-306-0 |
— | ||
|
14
|
14
95002-02084 ClipTUBE (B8) |
95002-02084 |
US $0.44 |
||
|
15
|
15
95002-408-000-4 ClampTUBE(D8) |
95002-408-000-4 |
from US $0.74 |
||
|
16
|
16
95005-350-651-0 Tube3.5X65 (95005-35001-10M) |
95005-350-651-0 |
US $1.18 |
||
|
17
|
17
95005-353-051-Q
Tube
|
95005-353-051-Q |
— | ||
|
18
|
18
95005-353-301-G Tube3.5X330 (95005-35001-10M) |
95005-353-301-G |
US $3.85 |
