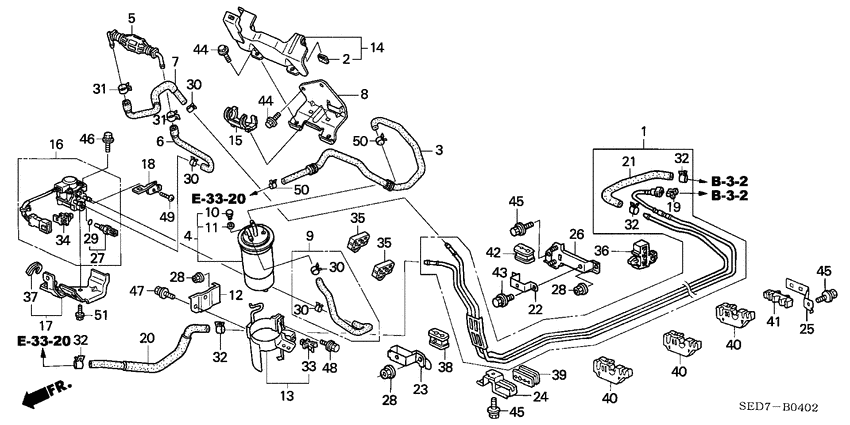

Fuel pipe/fuel strainer (DIESEL; LH) Diagram Honda ACCORD
- Year
- 2005
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- N22A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.2 SPORT
- area code
- KG
- left-hand drive
- +
- auto cruise
- +
- navigation
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16051-SEG-G01 Pipe compFUEL |
16051-SEG-G01 |
US $92.80 |
||
|
2
|
2
16712-SF4-J30 CushionFUEL STRAINER |
16712-SF4-J30 |
US $1.96 |
||
|
3
|
3
16720-RBD-G01 Hose comp.FUEL FEED |
16720-RBD-G01 |
US $24.96 |
||
|
4
|
4
16901-S6F-E01
Strainer comp.
|
16901-S6F-E01 |
— | ||
|
5
|
5
16902-SEF-E01
Primer
|
16902-SEF-E01 |
— | ||
|
6
|
6
16903-SEF-G03
Tube
|
16903-SEF-G03 |
— | ||
|
7
|
7
16904-SEF-G00
Tube
|
16904-SEF-G00 |
— | ||
|
8
|
8
16906-SEF-E00
Stay
|
16906-SEF-E00 |
— | ||
|
9
|
9
16907-SEF-G01
Tube a
|
16907-SEF-G01 |
— | ||
|
10
|
10
16908-S6F-E00
Screw
|
16908-S6F-E00 |
— | ||
|
11
|
11
16909-S6F-E00
Washer
|
16909-S6F-E00 |
— | ||
|
12
|
12
16917-SEF-G00
Stay a
|
16917-SEF-G00 |
— | ||
|
13
|
13
16918-SEF-G02
Stay
|
16918-SEF-G02 |
— | ||
|
14
|
14
16919-SEF-G01 GuardHAND PRIMER |
16919-SEF-G01 |
US $18.18 |
||
|
15
|
15
16920-SEF-E01 CatcherHAND PRIMER |
16920-SEF-E01 |
US $4.62 |
||
|
16
|
16
16930-RBD-G01 Heater assyFUEL |
16930-RBD-G01 |
US $366.08 |
||
|
17
|
17
16931-RBD-G01 Cover assy.FUEL HEATER |
16931-RBD-G01 |
US $12.93 |
||
|
18
|
18
16932-RBD-G01
Stay
|
16932-RBD-G01 |
— | ||
|
19
|
19
17711-ST0-004 RetainerWHITE) (SANOH |
17711-ST0-004 |
US $4.72 |
||
|
20
|
20
17723-SEF-G01 HoseFUEL RETURN |
17723-SEF-G01 |
US $11.90 |
||
|
21
|
21
17742-SEG-E01 Hose aFUEL RETURN |
17742-SEG-E01 |
US $13.86 |
||
|
22
|
22
17761-SEF-G00
Stay a
|
17761-SEF-G00 |
— | ||
|
23
|
23
17762-SDA-A00
Stay b
|
17762-SDA-A00 |
— | ||
|
24
|
24
17763-SDA-A01
Stay c
|
17763-SDA-A01 |
— | ||
|
25
|
25
17764-SDA-A01
Stay d
|
17764-SDA-A01 |
— | ||
|
26
|
26
17765-SEF-G00
Stay
|
17765-SEF-G00 |
— | ||
|
27
|
27
37895-RBD-E01
Sensor assy
|
37895-RBD-E01 |
— | ||
|
28
|
28
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
29
|
29
91307-PZA-004 O-ring9.5X1.9 |
91307-PZA-004 |
US $1.96 |
||
|
30
|
30
91406-SAA-J00 ClampTUBE (D12) |
91406-SAA-J00 |
US $1.19 |
||
|
31
|
31
91407-SDB-000 ClampTUBE (D12.5) |
91407-SDB-000 |
US $1.19 |
||
|
32
|
32
91411-SEB-003 ClampFUEL TUBE(D13.5) |
91411-SEB-003 |
US $3.01 |
||
|
33
|
33
91561-SP0-G01 ClipHEADLIGHT WASHER HOSE |
91561-SP0-G01 |
US $1.96 |
||
|
34
|
34
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
35
|
35
91591-SEF-E01 ClampFUEL TUBE |
91591-SEF-E01 |
US $2.94 |
||
|
36
|
36
91591-SEG-E01 ClampFUEL PIPE |
91591-SEG-E01 |
US $2.94 |
||
|
37
|
37
91593-RBD-E01 ClipFUEL HOSE |
91593-RBD-E01 |
US $2.80 |
||
|
38
|
38
91594-SDB-A00 Rubber aFUEL PIPE INSULATOR |
91594-SDB-A00 |
US $3.99 |
||
|
39
|
39
91595-SDB-A00 Rubber bFUEL PIPE INSULATOR |
91595-SDB-A00 |
US $6.58 |
||
|
40
|
40
91596-SDB-A01 Clamp cFUEL PIPE |
91596-SDB-A01 |
US $3.36 |
||
|
41
|
41
91597-SDB-A01 Clamp dFUEL PIPE |
91597-SDB-A01 |
US $2.31 |
||
|
42
|
42
91597-S6F-E00
Rubber a
|
91597-S6F-E00 |
— | ||
|
43
|
43
93403-060-120-4 Bolt-washer6X12 |
93403-060-120-4 |
US $0.59 |
||
|
44
|
44
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
45
|
45
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.65 |
||
|
46
|
46
93403-060-250-8 Bolt-washer6X25 |
93403-060-250-8 |
US $0.74 |
||
|
47
|
47
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
48
|
48
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
49
|
49
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
50
|
50
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
51
|
51
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
