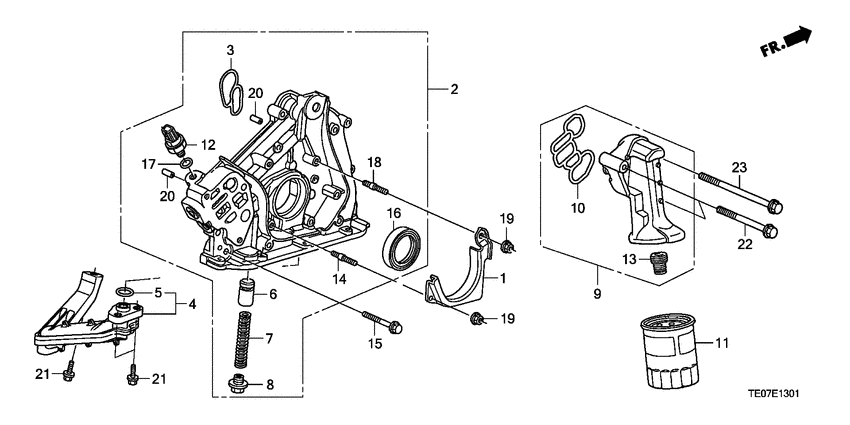

Oil pump (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14535-R70-A00 PlateTIMING BELT STOPPER |
14535-R70-A00 |
US $5.88 |
||
|
2
|
2
15100-R70-A11 Pump assy.OIL |
15100-R70-A11 |
US $202.24 |
||
|
3
|
3
15115-R70-A11 PackingOIL HOLE |
15115-R70-A11 |
from US $3.08 |
||
|
4
|
4
15220-RYE-A01 Strainer comp.OIL |
15220-RYE-A01 |
US $59.72 |
||
|
5
|
5
15221-RYE-A01 O-ring |
15221-RYE-A01 |
from US $1.75 |
||
|
6
|
6
15231-R70-A11
Valve
|
15231-R70-A11 |
— | ||
|
7
|
7
15232-R70-A11
Spring
|
15232-R70-A11 |
— | ||
|
8
|
8
15233-R70-A11 BoltSEALING, 18MM |
15233-R70-A11 |
US $2.73 |
||
|
9
|
9
15301-RN0-A00
Base comp.
|
15301-RN0-A00 |
— | ||
|
10
|
10
15302-RDV-J00 PackingOIL FILTER BASE |
15302-RDV-J00 |
from US $8.26 |
||
|
11
|
11
15400-PLM-A02 OIL FILTER (HONEYWELL) |
15400-PLM-A02 |
from US $10.35 |
||
| replacement | |||||
|
11
|
11
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $17.95 |
||
|
12
|
12
37260-RNA-A01 SensorOIL PRESSURE |
37260-RNA-A01 |
from US $136 |
||
|
13
|
13
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
14
|
14
90044-R70-A11 BoltSTUD, 6X16 |
90044-R70-A11 |
US $2.80 |
||
|
15
|
15
90051-P8A-A00 BoltFLANGE, 6X35 (SEAL) |
90051-P8A-A00 |
US $1.33 |
||
|
16
|
16
91212-R70-A02 Oil seal (auto)41X56X7 (NOK) |
91212-R70-A02 |
US $13.22 |
||
|
16
|
16
91212-R70-A01
Oil seal
|
91212-R70-A01 |
— | ||
| replacement | |||||
|
16
|
16
91212-R70-A02 Oil seal (auto)41X56X7 (NOK) |
91212-R70-A02 |
US $13.22 |
||
|
17
|
17
91319-PAA-A01 O-ring13X1.5 |
91319-PAA-A01 |
from US $2.37 |
||
|
18
|
18
92900-06018-1B BoltSTUD, 6X18 |
92900-06018-1B |
from US $0.59 |
||
|
19
|
19
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
20
|
20
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
21
|
21
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
22
|
22
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
23
|
23
95701-080-750-8 BoltFLANGE, 8X75 |
95701-080-750-8 |
from US $0.89 |
||
