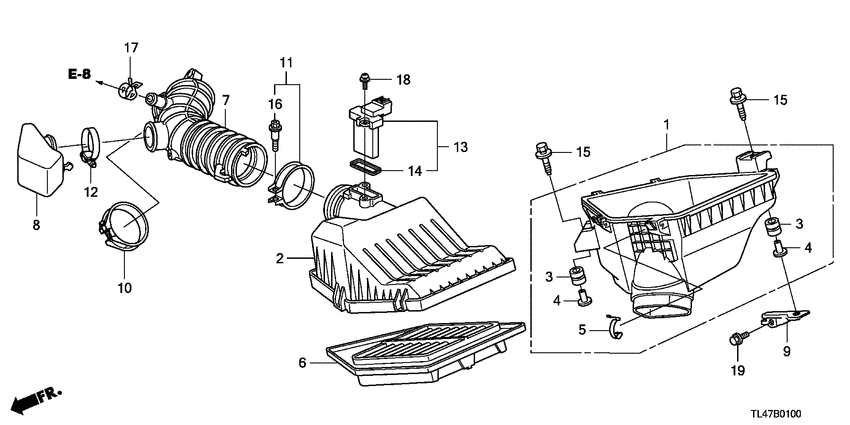

Air cleaner (2.0L) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- R20A
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2.0 S
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17202-R60-U00 Case setAIR CLEANER |
17202-R60-U00 |
US $49.54 |
||
|
2
|
2
17211-R60-U00 Cover comp.AIR CLEANER |
17211-R60-U00 |
US $33.02 |
||
|
3
|
3
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
3
|
3
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $3.51 |
||
|
4
|
4
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $3.29 |
||
|
5
|
5
17217-P2J-300 ClipAIR CLEANER |
17217-P2J-300 |
from US $3.51 |
||
|
6
|
6
17220-R60-U00 Element assy.AIR CLEANER |
17220-R60-U00 |
from US $35.03 |
||
|
7
|
7
17228-R60-U00
Tube
|
17228-R60-U00 |
— | ||
|
8
|
8
17234-R60-U00 ChamberAIR FLOW |
17234-R60-U00 |
US $13.02 |
||
|
9
|
9
17261-R60-U00
Stay comp
|
17261-R60-U00 |
— | ||
|
10
|
10
17316-P1E-000 ClampAIR FLOW TUBE (70) |
17316-P1E-000 |
US $5.54 |
||
|
11
|
11
17316-RYE-A01 ClampAIR FLOW(78) |
17316-RYE-A01 |
US $5.32 |
||
|
12
|
12
17318-PLZ-E01 BandHOSE (D50) |
17318-PLZ-E01 |
US $3.22 |
||
|
13
|
13
37980-RNA-A01 Meter assyAIR FLOW |
37980-RNA-A01 |
US $206.72 |
||
|
14
|
14
37985-RAD-L11 Gasket |
37985-RAD-L11 |
US $5.37 |
||
|
15
|
15
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $3.64 |
||
|
16
|
16
90005-RGA-000 BoltCLAMP, 4X25 |
90005-RGA-000 |
US $1.33 |
||
|
17
|
17
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
18
|
18
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
