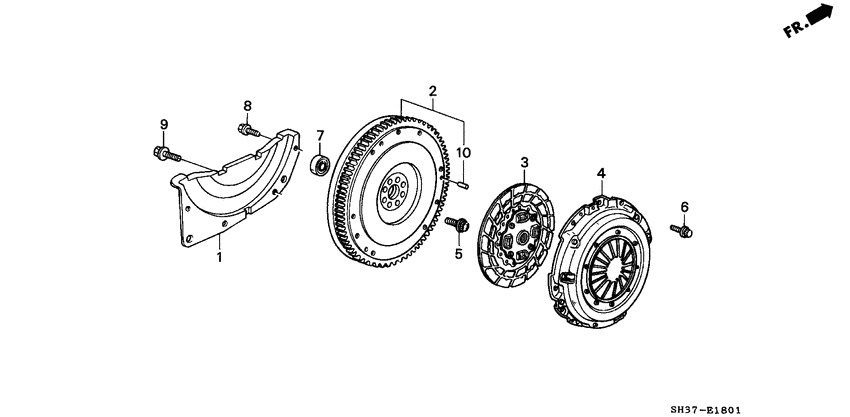

Clutch (VTEC) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KE
- right-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21351-PR3-010 CoverCLUTCH CASE |
21351-PR3-010 |
US $16.77 |
||
|
2
|
2
22100-PR3-020 Flywheel comp. |
22100-PR3-020 |
US $285.44 |
||
|
3
|
3
22200-PR3-020 Disk compFRICTION |
22200-PR3-020 |
US $153.60 |
||
|
4
|
4
22300-PR3-010 Disk compPRESSURE |
22300-PR3-010 |
US $209.92 |
||
|
5
|
5
90011-PH3-000 BoltFLANGE, 12MM |
90011-PH3-000 |
from US $2.81 |
||
|
6
|
6
90034-PR3-000 BoltTWELVE POINT, 8MM |
90034-PR3-000 |
US $2.80 |
||
|
7
|
7
91006-634-008 BearingCLUTCH PILOT (NTN) |
91006-634-008 |
US $11.56 |
||
|
7
|
7
91006-634-004 BearingCLUTCH PILOT (KOYO) |
91006-634-004 |
US $10.64 |
||
|
8
|
8
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
9
|
9
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
10
|
10
96220-60178 Roller6X17.8 |
96220-60178 |
US $0.22 |
