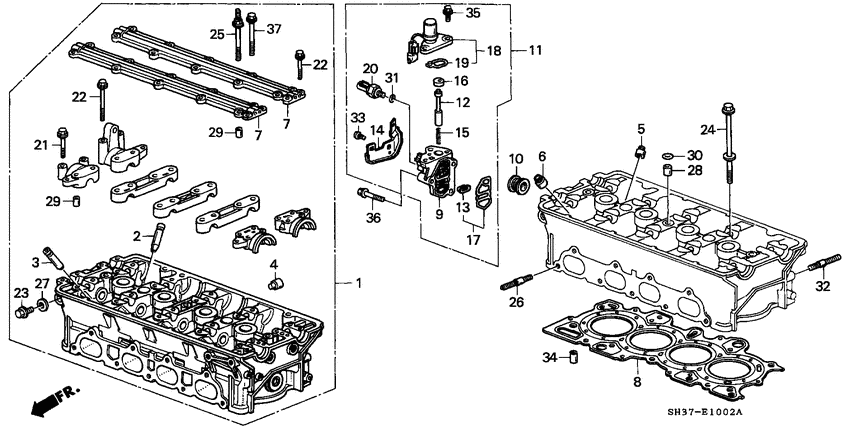

Cylinder head (DOHC; VTEC) Diagram Honda CIVIC
- Year
- 1990
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6I-VT
- area code
- KE
- right-hand drive
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-PR3-010 Head assyCYLINDER |
12100-PR3-010 |
US $2,929.92 |
||
|
2
|
2
12204-PR3-305 GuideIN. VALVE (OS) |
12204-PR3-305 |
US $17.41 |
||
|
3
|
3
12205-PR3-305 GuideEX. VALVE (OS) |
12205-PR3-305 |
from US $10.50 |
||
|
4
|
4
12208-PG6-300 ScrewSEALING |
12208-PG6-300 |
US $2.24 |
||
|
5
|
5
12210-PJ7-004 Seal aVALVE STEM (NOK) |
12210-PJ7-004 |
US $5.32 |
||
|
5
|
5
12210-PJ7-003 Seal aVALVE STEM (ARAI) |
12210-PJ7-003 |
US $5.32 |
||
|
6
|
6
12211-PJ7-004 Seal bVALVE STEM (NOK) |
12211-PJ7-004 |
US $5.32 |
||
|
6
|
6
12211-PJ7-003
Seal b
|
12211-PJ7-003 |
— | ||
|
7
|
7
12237-PR3-000
Pipe comp
|
12237-PR3-000 |
— | ||
|
8
|
8
12251-PR3-004 GasketCYLINDER HEAD |
12251-PR3-004 |
US $74.88 |
||
|
9
|
9
12331-PR3-005
Body
|
12331-PR3-005 |
— | ||
|
10
|
10
12513-PH5-003
Rubber comp
|
12513-PH5-003 |
— | ||
|
11
|
11
15810-PR3-005
Valve assy.
|
15810-PR3-005 |
— | ||
|
12
|
12
15813-PR3-005
Valve
|
15813-PR3-005 |
— | ||
|
13
|
13
15815-PR3-004 Filter compSPOOL VALVE |
15815-PR3-004 |
US $29.17 |
||
|
14
|
14
15816-PR3-000
Stay
|
15816-PR3-000 |
— | ||
|
15
|
15
15818-PR3-005
Spring comp
|
15818-PR3-005 |
— | ||
|
16
|
16
15824-PR3-005
Stopper
|
15824-PR3-005 |
— | ||
|
17
|
17
15825-PR3-005 Filter assySPOOL VALVE |
15825-PR3-005 |
US $34.41 |
||
|
18
|
18
36171-PR3-005
Solenoid assy.
|
36171-PR3-005 |
— | ||
|
19
|
19
36172-PR3-005 Filter assySOLENOID |
36172-PR3-005 |
US $15.41 |
||
|
20
|
20
37250-PR3-003 Switch assyVALVE TIMING OIL PRESSURE |
37250-PR3-003 |
US $91.96 |
||
|
21
|
21
90002-PJ7-010 BoltFLANGE, 6X45 |
90002-PJ7-010 |
US $4.07 |
||
|
22
|
22
90002-PR3-000 BoltFLANGE, 6X55 |
90002-PR3-000 |
US $1.68 |
||
|
23
|
23
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
24
|
24
90006-PG6-003 Bolt-washer11X155 |
90006-PG6-003 |
US $14.06 |
||
|
25
|
25
90014-PM7-000
Bolt a
|
90014-PM7-000 |
— | ||
|
26
|
26
90026-PE0-000
Bolt
|
90026-PE0-000 |
— | ||
| replacement | |||||
|
26
|
26
90026-PT0-000 BoltSTUD, 8X38 |
90026-PT0-000 |
from US $2.30 |
||
|
27
|
27
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
28
|
28
90701-679-000 Dowel pin8X10 |
90701-679-000 |
US $2.11 |
||
| replacement | |||||
|
28
|
28
94301-08100 Dowel pin8X10 |
94301-08100 |
from US $0.89 |
||
|
29
|
29
90707-PH7-000 Dowel pin10X12 |
90707-PH7-000 |
US $2.94 |
||
|
30
|
30
91308-PH9-000 O-ring8.8X1.9 |
91308-PH9-000 |
from US $2.37 |
||
| replacement | |||||
|
30
|
30
91302-GE0-000 O-ring (8.8x1.9) |
91302-GE0-000 |
from US $2.30 |
||
|
31
|
31
91319-PR3-004
O-ring
|
91319-PR3-004 |
— | ||
|
31
|
31
91319-PR3-003 O-ring13X1.5 (ARAI) |
91319-PR3-003 |
from US $2.44 |
||
|
32
|
32
92900-08028-1B BoltSTUD, 8X28 |
92900-08028-1B |
from US $0.74 |
||
|
33
|
33
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
34
|
34
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
35
|
35
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.36 |
||
|
36
|
36
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
37
|
37
95701-080-500-9
Bolt
|
95701-080-500-9 |
— | ||
| replacement | |||||
|
37
|
37
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
