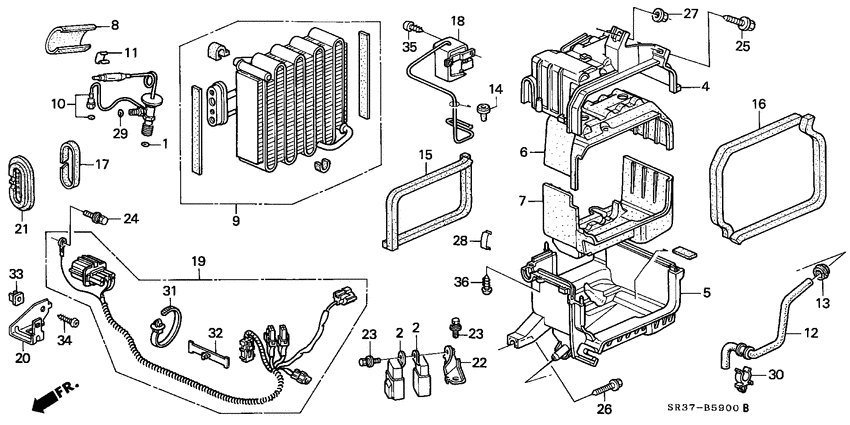

Air conditioner (UNIT; LH; -'93) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 3
- grade
- DXI
- area code
- KG
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
2
|
2
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
4
|
4
80201-SR3-A00
Case
|
80201-SR3-A00 |
— | ||
|
5
|
5
80202-SR3-A00
Case
|
80202-SR3-A00 |
— | ||
|
6
|
6
80205-SR3-A00
Insulator
|
80205-SR3-A00 |
— | ||
|
7
|
7
80206-SR3-A00
Insulator
|
80206-SR3-A00 |
— | ||
|
8
|
8
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $12.21 |
||
|
9
|
9
80215-SR3-A02 Evaporator comp.SAK |
80215-SR3-A02 |
US $363.52 |
||
|
10
|
10
80220-SR3-A01
Valve assy.
|
80220-SR3-A01 |
— | ||
|
11
|
11
80225-SR3-000 Clamp |
80225-SR3-000 |
US $3.15 |
||
|
12
|
12
80271-SR3-A00
Hose
|
80271-SR3-A00 |
— | ||
|
13
|
13
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
14
|
14
80282-SM4-A00
Grommet
|
80282-SM4-A00 |
— | ||
|
15
|
15
80286-SR3-000 SealEVAPORATOR INNER |
80286-SR3-000 |
US $7 |
||
|
16
|
16
80287-SR3-000 SealEVAPORATOR OUTER |
80287-SR3-000 |
US $7.84 |
||
|
17
|
17
80288-SR3-000 SealEVAPORATOR JOINT |
80288-SR3-000 |
US $6.19 |
||
|
18
|
18
80430-SR3-A01
Thermostat
|
80430-SR3-A01 |
— | ||
|
19
|
19
80460-SR3-A02
Harness
|
80460-SR3-A02 |
— | ||
|
20
|
20
80463-SR3-A00
Bracket
|
80463-SR3-A00 |
— | ||
|
21
|
21
80464-SR3-000
Grommet
|
80464-SR3-000 |
— | ||
|
22
|
22
80491-SR3-000
Bracket
|
80491-SR3-000 |
— | ||
|
23
|
23
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
24
|
24
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
25
|
25
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
26
|
26
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
27
|
27
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $0.41 |
||
|
28
|
28
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
29
|
29
91301-SM4-A00 O-ring8MM |
91301-SM4-A00 |
US $1.75 |
||
|
30
|
30
91546-SR3-003 Clamp16.5 |
91546-SR3-003 |
US $2.16 |
||
|
31
|
31
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $3.40 |
||
|
32
|
32
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
33
|
33
91619-SA5-000 GrommetSCREW, 6MM |
91619-SA5-000 |
from US $2.12 |
||
|
34
|
34
93904-46220 ScrewTAPPING, 6X16 |
93904-46220 |
US $0.44 |
||
|
35
|
35
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
36
|
36
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
