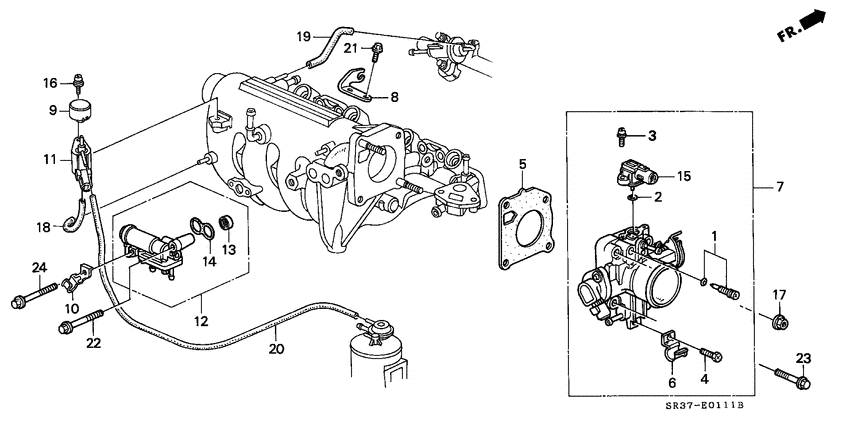

Throttle body (1.5L SOHC VTEC) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- VEI
- power steering
- +
- area code
- KE
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16075-P07-000 O-ring |
16075-P07-000 |
from US $3.44 |
||
|
3
|
3
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
4
|
4
16081-PW0-G00
Screw
|
16081-PW0-G00 |
— | ||
|
5
|
5
16176-P05-A02
Gasket
|
16176-P05-A02 |
— | ||
|
5
|
5
16176-P05-A01 GasketTHROTTLE BODY (ISHINO GASKET) |
16176-P05-A01 |
US $4.76 |
||
|
6
|
6
16179-PP4-E00
Binder
|
16179-PP4-E00 |
— | ||
|
7
|
7
16400-P07-A00
Throttle Body Assy
|
16400-P07-A00 |
— | ||
|
8
|
8
16411-P05-A00
Stay
|
16411-P05-A00 |
— | ||
|
9
|
9
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
10
|
10
36151-P05-A00
Stay
|
36151-P05-A00 |
— | ||
|
11
|
11
36162-PT3-Q01
Valve assy.
|
36162-PT3-Q01 |
— | ||
|
12
|
12
36450-PP4-E01
Valve assy.
|
36450-PP4-E01 |
— | ||
|
13
|
13
36454-PS4-003 Filter compELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
36454-PS4-003 |
from US $3.33 |
||
|
14
|
14
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.44 |
||
|
15
|
15
37830-P05-A01 Sensor assyMAP |
37830-P05-A01 |
US $270.08 |
||
|
16
|
16
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
95005-350-901-C Tube3.5X90 (95005-35001-10M) |
95005-350-901-C |
US $1.18 |
||
|
19
|
19
95005-351-351-0
Tube
|
95005-351-351-0 |
— | ||
| replacement | |||||
|
19
|
19
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
20
|
20
95005-354-101-7
Tube
|
95005-354-101-7 |
— | ||
|
21
|
21
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
22
|
22
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
23
|
23
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
24
|
24
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
