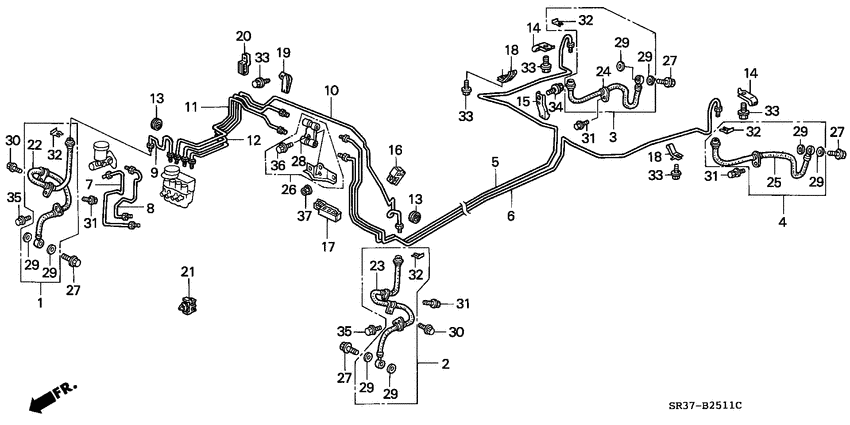

Brake line (SRS; RH) Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
46330-SR3-020
Pipe comp. c
|
46330-SR3-020 |
— | ||
|
6
|
6
46340-SR3-020
Pipe comp. d
|
46340-SR3-020 |
— | ||
|
7
|
7
46374-SR3-010
Pipe comp. u
|
46374-SR3-010 |
— | ||
|
8
|
8
46375-SR3-010
Pipe comp. v
|
46375-SR3-010 |
— | ||
|
9
|
9
46376-SR3-020
Pipe comp. w
|
46376-SR3-020 |
— | ||
|
10
|
10
46377-SR3-020
Pipe comp. x
|
46377-SR3-020 |
— | ||
|
11
|
11
46378-SR3-010
Pipe comp. y
|
46378-SR3-010 |
— | ||
|
12
|
12
46379-SR3-010
Pipe comp. z
|
46379-SR3-010 |
— | ||
|
13
|
13
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
14
|
14
46391-SR3-J00 ClampBRAKE PIPE |
46391-SR3-J00 |
US $7.10 |
||
|
15
|
15
46391-SR3-J10 ClampBRAKE PIPE |
46391-SR3-J10 |
US $6.72 |
||
|
16
|
16
46391-SR3-003 Clip ABRAKE PIPE |
46391-SR3-003 |
US $4.44 |
||
|
17
|
17
46391-SR3-931
Clip d
|
46391-SR3-931 |
— | ||
|
18
|
18
46392-SR3-000 ClipBRAKE PIPE |
46392-SR3-000 |
US $8.73 |
||
|
19
|
19
46392-SR3-910
Clamp
|
46392-SR3-910 |
— | ||
|
20
|
20
46392-SR3-931
Clip
|
46392-SR3-931 |
— | ||
|
21
|
21
46393-SR3-003 ClipBRAKE PIPE |
46393-SR3-003 |
from US $6.07 |
||
|
22
|
22
46410-SR3-N02
Hose
|
46410-SR3-N02 |
— | ||
|
22
|
22
46410-SR3-N01 HoseR. FR. BRAKE (NICHIRIN) |
46410-SR3-N01 |
US $48.13 |
||
|
23
|
23
46411-SR3-N02
Hose
|
46411-SR3-N02 |
— | ||
|
23
|
23
46411-SR3-N01 HoseL. FR. BRAKE (NICHIRIN) |
46411-SR3-N01 |
US $48.13 |
||
|
24
|
24
46430-SR3-934 HoseR. RR. BRAKE (NICHIRIN) (DISK) 00000000 - 0S002146 |
46430-SR3-934 |
US $33.41 |
||
|
24
|
24
46430-SR3-937 HoseR. RR. BRAKE (NICHIRIN) (DISK) 0S002147 - |
46430-SR3-937 |
US $33.41 |
||
|
24
|
24
46430-SR3-938
Hose
0S002147 - |
46430-SR3-938 |
— | ||
|
24
|
24
46430-SR3-935
Hose
00000000 - 0S002146 |
46430-SR3-935 |
— | ||
|
25
|
25
46431-SR3-937 HoseL. RR. BRAKE (NICHIRIN) (DISK) 0S002147 - |
46431-SR3-937 |
US $33.41 |
||
|
25
|
25
46431-SR3-938
Hose
0S002147 - |
46431-SR3-938 |
— | ||
|
25
|
25
46431-SR3-935
Hose
00000000 - 0S002146 |
46431-SR3-935 |
— | ||
|
25
|
25
46431-SR3-934 HoseL. RR. BRAKE (NICHIRIN) (DISK) 00000000 - 0S002146 |
46431-SR3-934 |
US $33.41 |
||
|
26
|
26
46460-SR3-801
Joint assy.
|
46460-SR3-801 |
— | ||
|
27
|
27
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.92 |
||
|
28
|
28
46470-SH9-802
Joint
|
46470-SH9-802 |
— | ||
|
29
|
29
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.33 |
||
|
30
|
30
90105-SB0-003 Bolt-washer8X16 |
90105-SB0-003 |
US $0.67 |
||
|
31
|
31
90105-SD9-003 Bolt-washer8X20 |
90105-SD9-003 |
US $0.67 |
||
|
32
|
32
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $3.03 |
||
|
33
|
33
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
35
|
35
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
36
|
36
93403-060-350-8 Bolt-washer6X35 |
93403-060-350-8 |
US $0.74 |
||
|
37
|
37
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
