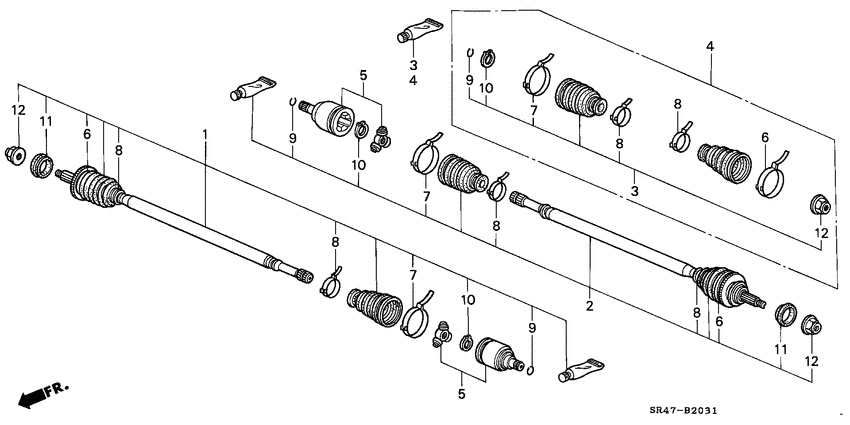

Rear driveshaft ('94-) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- RTSI
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42010-SR7-J01
Driveshaft set
|
42010-SR7-J01 |
— | ||
|
2
|
2
42011-SR7-J01
Driveshaft set
|
42011-SR7-J01 |
— | ||
|
3
|
3
42017-ST6-003 Boot setINBOARD |
42017-ST6-003 |
US $62.59 |
||
|
4
|
4
42018-ST6-013
Boot set
|
42018-ST6-013 |
— | ||
|
5
|
5
42320-SR7-J01
Joint comp
|
42320-SR7-J01 |
— | ||
|
6
|
6
44316-SJ7-003
Band
|
44316-SJ7-003 |
— | ||
| replacement | |||||
|
6
|
6
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
7
|
7
44317-SJ7-003 BandINBOARD BOOT |
44317-SJ7-003 |
US $12.04 |
||
|
8
|
8
44318-SJ7-003 BandSHAFT BOOT |
44318-SJ7-003 |
from US $2.59 |
||
|
9
|
9
44319-SC2-003 Set ring24X1.6 |
44319-SC2-003 |
US $5.64 |
||
|
10
|
10
44338-ST6-003
Circlip
|
44338-ST6-003 |
— | ||
|
11
|
11
44347-SB2-003 RingOUTBOARD |
44347-SB2-003 |
US $5.32 |
||
|
12
|
12
90305-692-010 Nut |
90305-692-010 |
US $8.14 |
||
