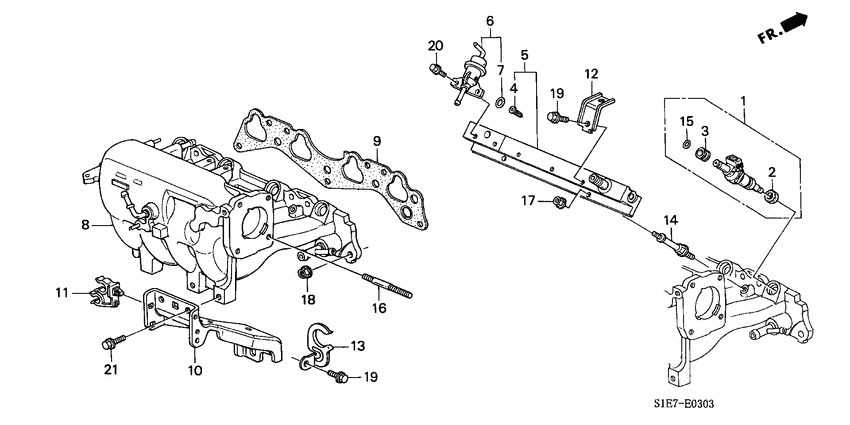

Intake manifold (1.6L SOHC VTEC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- D16W
- transmission
- 4AT
- Number of doors
- 5
- grade
- ES
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
- colored outer handle
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P8A-A00 Packing setINJECTOR |
06164-P8A-A00 |
US $205.36 |
||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.95 |
||
| replacement | |||||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $25.28 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.56 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16614-P0A-000 MeshFUEL FILTER |
16614-P0A-000 |
US $3.50 |
||
|
5
|
5
16620-PDT-G00
Pipe assy.
|
16620-PDT-G00 |
— | ||
|
6
|
6
16740-P2E-A01
Regulator assy
|
16740-P2E-A01 |
— | ||
|
7
|
7
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.59 |
||
|
8
|
8
17100-PDT-E51
Manifold comp
|
17100-PDT-E51 |
— | ||
|
9
|
9
17105-P2P-A01 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-P2P-A01 |
US $41.07 |
||
|
10
|
10
17132-P9L-E01
Stay
|
17132-P9L-E01 |
— | ||
|
11
|
11
19517-P08-003
Clamp
|
19517-P08-003 |
— | ||
|
12
|
12
32743-P3F-000
Stay c
|
32743-P3F-000 |
— | ||
|
13
|
13
36156-P2M-A00
Clamp
|
36156-P2M-A00 |
— | ||
|
14
|
14
90027-P0A-003
Bolt a
|
90027-P0A-003 |
— | ||
| replacement | |||||
|
14
|
14
90027-P0A-305
Bolt a
|
90027-P0A-305 |
— | ||
|
15
|
15
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
15
|
15
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
15
|
15
16074-ZY3-000 O-ring |
16074-ZY3-000 |
US $4.22 |
||
|
16
|
16
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
18
|
18
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.52 |
||
