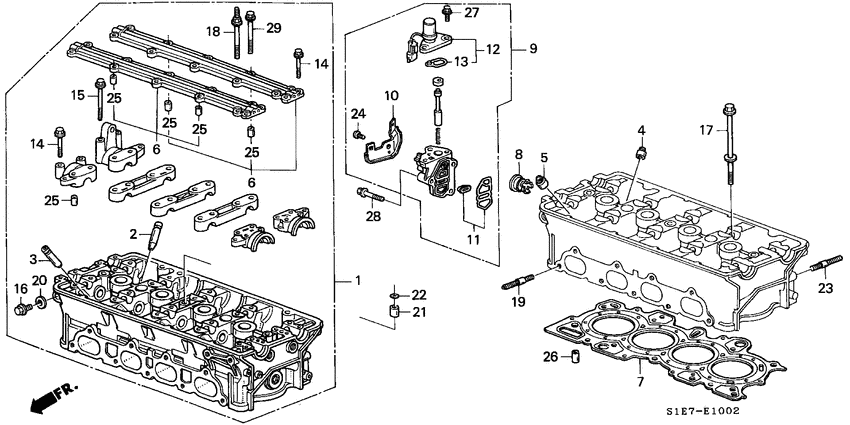

Cylinder head (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- colored outer handle
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-P72-000
Head assy
|
12100-P72-000 |
— | ||
|
2
|
2
12204-PR3-305 GuideIN. VALVE (OS) |
12204-PR3-305 |
US $17.41 |
||
|
3
|
3
12205-PR3-305 GuideEX. VALVE (OS) |
12205-PR3-305 |
from US $10.50 |
||
|
4
|
4
12210-P45-G01 Seal aVALVE STEM (CORCOS) |
12210-P45-G01 |
US $3.85 |
||
|
4
|
4
12210-PZ1-003 Seal aVALVE STEM(ARAI) |
12210-PZ1-003 |
US $4.74 |
||
| replacement | |||||
|
4
|
4
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.46 |
||
|
5
|
5
12211-PZ1-003 Seal bVALVE STEM(ARAI) |
12211-PZ1-003 |
from US $3.13 |
||
|
5
|
5
12211-P45-G01 Seal bVALVE STEM (CORCOS) |
12211-P45-G01 |
US $3.85 |
||
|
6
|
6
12237-P30-000 Pipe compCAM HOLDER |
12237-P30-000 |
US $76.16 |
||
|
7
|
7
12251-P30-014 Gasket, Cylinder Head(NIPPON LEAKLESS) |
12251-P30-014 |
US $146.61 |
||
|
8
|
8
12513-P72-003 PlugCYLINDER HEAD |
12513-P72-003 |
from US $6.51 |
||
|
9
|
9
15810-P30-J01
Valve assy.
|
15810-P30-J01 |
— | ||
|
10
|
10
15816-PR3-000
Stay
|
15816-PR3-000 |
— | ||
|
11
|
11
15825-P08-005 Filter and Gasket, SPOOL VALVE |
15825-P08-005 |
US $32.16 |
||
|
12
|
12
36171-P08-005
Solenoid assy.
|
36171-P08-005 |
— | ||
|
13
|
13
36172-P08-015 Packing, SOLENOID BASE |
36172-P08-015 |
from US $7.97 |
||
|
14
|
14
90002-PJ7-010 BoltFLANGE, 6X45 |
90002-PJ7-010 |
US $4.07 |
||
|
15
|
15
90002-PR3-000 BoltFLANGE, 6X55 |
90002-PR3-000 |
US $1.68 |
||
|
16
|
16
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
17
|
17
90006-P72-003 Bolt-washer11X164 |
90006-P72-003 |
from US $10.26 |
||
|
18
|
18
90014-PR3-000 Bolt A, HEAD COVER |
90014-PR3-000 |
from US $5.02 |
||
|
19
|
19
90026-PE0-000
Bolt
|
90026-PE0-000 |
— | ||
| replacement | |||||
|
19
|
19
90026-PT0-000 BoltSTUD, 8X38 |
90026-PT0-000 |
from US $2.30 |
||
|
20
|
20
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
21
|
21
90701-679-000 Dowel pin8X10 |
90701-679-000 |
US $2.11 |
||
| replacement | |||||
|
21
|
21
94301-08100 Dowel pin8X10 |
94301-08100 |
from US $0.89 |
||
|
22
|
22
91308-PH9-000 O-ring8.8X1.9 |
91308-PH9-000 |
from US $2.37 |
||
| replacement | |||||
|
22
|
22
91302-GE0-000 O-ring (8.8x1.9) |
91302-GE0-000 |
from US $2.30 |
||
|
23
|
23
92900-08025-1B BoltSTUD, 8X25 |
92900-08025-1B |
from US $0.74 |
||
|
24
|
24
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
25
|
25
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
26
|
26
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
27
|
27
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.36 |
||
|
28
|
28
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
29
|
29
95701-080-500-9
Bolt
|
95701-080-500-9 |
— | ||
| replacement | |||||
|
29
|
29
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
