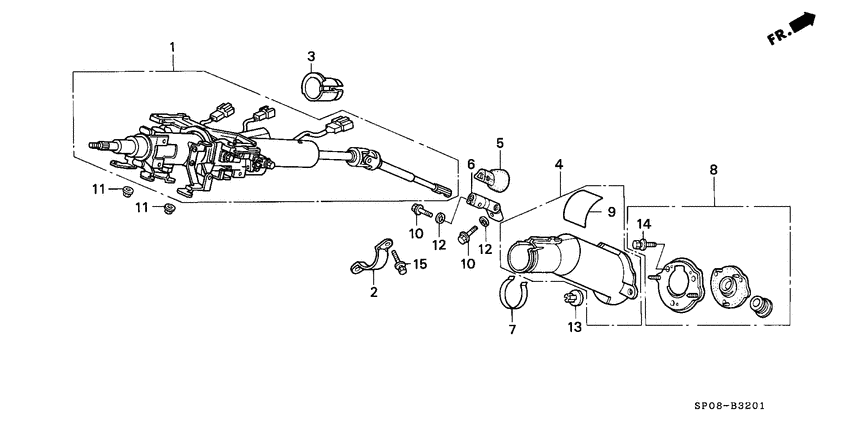

Steering column (2) Diagram Honda LEGEND
- Year
- 1995
- Model code
- LEGEND
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LEGEND
- area code
- KN
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53200-SP0-A91
Column assy
|
53200-SP0-A91 |
— | ||
|
2
|
2
53216-SP0-A00
Holder b
|
53216-SP0-A00 |
— | ||
|
3
|
3
53217-SP0-J00
Collar
|
53217-SP0-J00 |
— | ||
|
4
|
4
53320-SP0-A80
Cover
|
53320-SP0-A80 |
— | ||
|
5
|
5
53321-SF1-950
Guard
|
53321-SF1-950 |
— | ||
|
6
|
6
53323-SP0-003 Joint comp. bSTEERING |
53323-SP0-003 |
US $68.48 |
||
|
7
|
7
53326-SP0-000
Clip b
|
53326-SP0-000 |
— | ||
|
8
|
8
53334-SP0-A00
Dust seal comp.
|
53334-SP0-A00 |
— | ||
|
9
|
9
77873-SP0-A80 LabelSTEERING COLUMN CAUTION (ENGLISH/FRENCH) |
77873-SP0-A80 |
US $2.94 |
||
|
10
|
10
90135-SB0-003 BoltSTEERING YOKE, 8X28 (NIPPON SEIKO) |
90135-SB0-003 |
from US $0.77 |
||
|
11
|
11
90361-SR3-000 NutFLANGE, 8MM |
90361-SR3-000 |
from US $0.99 |
||
|
12
|
12
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $0.19 |
||
|
13
|
13
91517-SE0-003 ClipLOWER OUTER DASHBOARD INSULATOR |
91517-SE0-003 |
US $2.37 |
||
|
14
|
14
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
15
|
15
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
