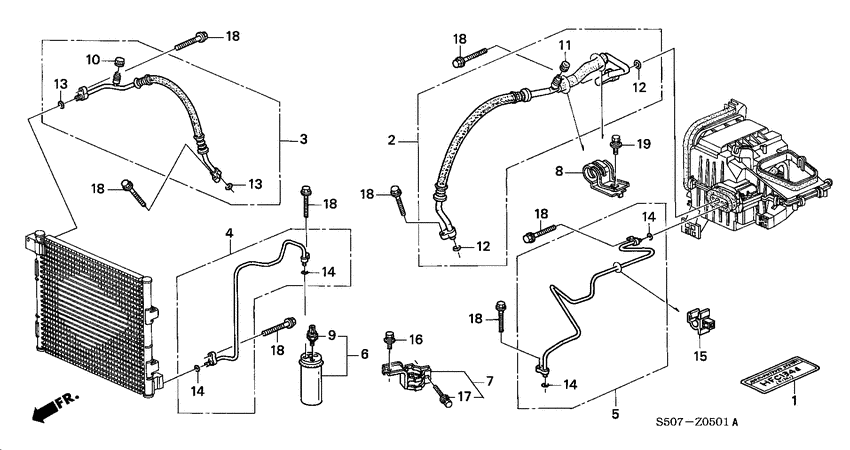

Air conditioner (HOSES/PIPES; RH) Diagram Honda LOGO
- Year
- 1999
- Model code
- LOGO
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 3
- grade
- LOGO
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.47 |
||
|
2
|
2
80311-S50-E01
Hose comp.
|
80311-S50-E01 |
— | ||
|
3
|
3
80315-S50-E01
Hose comp.
|
80315-S50-E01 |
— | ||
|
4
|
4
80331-S50-G01 PipeCONDENSER |
80331-S50-G01 |
US $49.92 |
||
|
5
|
5
80341-S50-E01
Pipe
|
80341-S50-E01 |
— | ||
|
6
|
6
80351-S04-003 Receiver compSHOWA |
80351-S04-003 |
US $135.68 |
||
|
7
|
7
80352-S04-000
Bracket
|
80352-S04-000 |
— | ||
|
8
|
8
80361-SK7-010 Clamp aSUCTION PIPE |
80361-SK7-010 |
US $9.61 |
||
|
9
|
9
80440-SS0-901
Switch
|
80440-SS0-901 |
— | ||
|
9
|
9
80440-SK3-901
Switch
|
80440-SK3-901 |
— | ||
|
10
|
10
80865-ST0-003 Cap hVALVE (NICHIRIN) |
80865-ST0-003 |
US $2.38 |
||
|
11
|
11
80866-ST0-003 Cap lVALVE (NICHIRIN) |
80866-ST0-003 |
from US $1.19 |
||
|
12
|
12
80871-S50-000
O-ring
|
80871-S50-000 |
— | ||
| replacement | |||||
|
12
|
12
80871-S5A-003 O-ring5/8" |
80871-S5A-003 |
from US $2.28 |
||
|
13
|
13
80872-S50-000
O-ring
|
80872-S50-000 |
— | ||
| replacement | |||||
|
13
|
13
80872-S5A-003 O-ring1/2" |
80872-S5A-003 |
from US $0.76 |
||
|
14
|
14
80873-S50-000 O-ring8MM |
80873-S50-000 |
from US $2.28 |
||
|
15
|
15
91548-SR3-003 Clip8MM |
91548-SR3-003 |
from US $1.26 |
||
|
16
|
16
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
17
|
17
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.65 |
||
|
19
|
19
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
