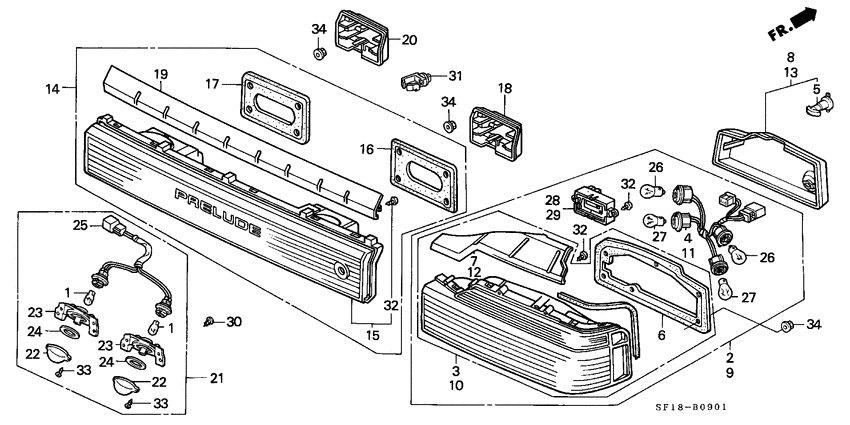

Taillight (2) Diagram Honda PRELUDE
- Year
- 1990
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 2.0EX
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
2
|
2
33500-SF1-J11
Taillight assy.
|
33500-SF1-J11 |
— | ||
|
3
|
3
33501-SF1-J11
Housing comp
|
33501-SF1-J11 |
— | ||
|
4
|
4
33502-SF1-J11
Cord
|
33502-SF1-J11 |
— | ||
|
5
|
5
33503-SB4-672ZB
Nut
|
33503-SB4-672ZB |
— | ||
|
5
|
5
33503-SB4-672ZC
Nut
|
33503-SB4-672ZC |
— | ||
|
6
|
6
33503-SF1-A11
Gasket
|
33503-SF1-A11 |
— | ||
|
7
|
7
33504-SF1-A11
Bezel
|
33504-SF1-A11 |
— | ||
|
8
|
8
33510-SF1-A11ZB
Cover assy.
|
33510-SF1-A11ZB |
— | ||
|
8
|
8
33510-SF1-A11ZA
Cover assy.
|
33510-SF1-A11ZA |
— | ||
|
9
|
9
33550-SF1-J11
Taillight assy.
|
33550-SF1-J11 |
— | ||
|
10
|
10
33551-SF1-J11
Housing comp
|
33551-SF1-J11 |
— | ||
|
11
|
11
33552-SF1-J11
Cord
|
33552-SF1-J11 |
— | ||
|
12
|
12
33554-SF1-A11
Bezel
|
33554-SF1-A11 |
— | ||
|
13
|
13
33560-SF1-A11ZA
Cover assy.
|
33560-SF1-A11ZA |
— | ||
|
13
|
13
33560-SF1-A11ZB
Cover assy.
|
33560-SF1-A11ZB |
— | ||
|
14
|
14
33700-SF1-J11
Garnish assy
|
33700-SF1-J11 |
— | ||
|
15
|
15
33701-SF1-J11
Housing comp
|
33701-SF1-J11 |
— | ||
|
16
|
16
33703-SF1-J11
Gasket
|
33703-SF1-J11 |
— | ||
|
17
|
17
33704-SF1-J11
Gasket
|
33704-SF1-J11 |
— | ||
|
18
|
18
33705-SF1-J00ZA
Cover
|
33705-SF1-J00ZA |
— | ||
|
18
|
18
33705-SF1-J00ZB
Cover
|
33705-SF1-J00ZB |
— | ||
|
19
|
19
33705-SF1-J11
Bezel
|
33705-SF1-J11 |
— | ||
|
20
|
20
33706-SF1-J00ZA
Cover
|
33706-SF1-J00ZA |
— | ||
|
20
|
20
33706-SF1-J00ZB
Cover
|
33706-SF1-J00ZB |
— | ||
|
21
|
21
34100-SF1-G02
Light assy
|
34100-SF1-G02 |
— | ||
|
22
|
22
34101-SH3-G01
Lens
|
34101-SH3-G01 |
— | ||
|
23
|
23
34102-SH3-A01 Housing |
34102-SH3-A01 |
US $12.73 |
||
|
24
|
24
34103-SH3-A01 Packing |
34103-SH3-A01 |
US $3.40 |
||
|
25
|
25
34105-SF1-G01
Cord comp
|
34105-SF1-G01 |
— | ||
|
26
|
26
34903-SF1-A01 Bulb12V 45CP |
34903-SF1-A01 |
from US $4.66 |
||
|
27
|
27
34906-SA0-003 Bulb12V 27W/5W |
34906-SA0-003 |
US $3.26 |
||
|
28
|
28
37540-SM4-901 SensorSTOP LAMP FAILURE |
37540-SM4-901 |
US $69.41 |
||
|
29
|
29
37540-SM4-003 SensorSTOP LAMP FAILURE |
37540-SM4-003 |
US $51.71 |
||
|
30
|
30
90102-SA4-000
Screw
|
90102-SA4-000 |
— | ||
| replacement | |||||
|
30
|
30
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
32
|
32
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
|
33
|
33
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
34
|
34
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
