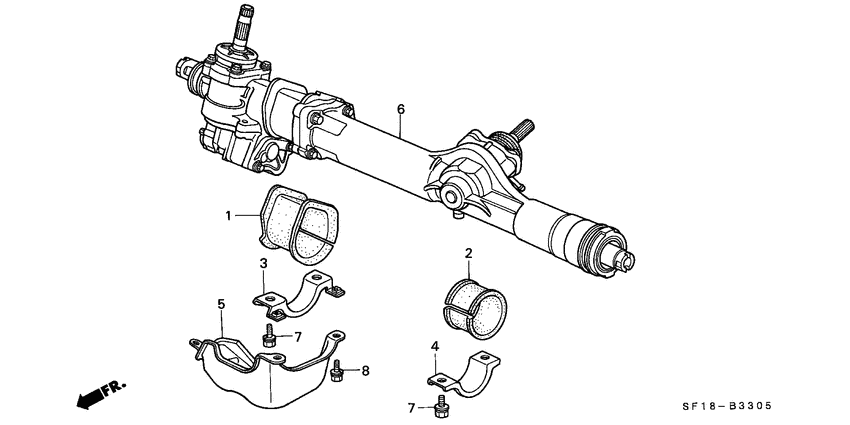

P.s. gear box (4WS; RH) Diagram Honda PRELUDE
- Year
- 1988
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 4WS 2.0 SI
- area code
- KQ
- right-hand drive
- +
- auto cruise
- +
- 4ws
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53435-SF1-950
Cushion a
|
53435-SF1-950 |
— | ||
|
2
|
2
53436-SF1-950
Cushion b
|
53436-SF1-950 |
— | ||
|
3
|
3
53437-SF1-A50
Bracket a
|
53437-SF1-A50 |
— | ||
|
4
|
4
53438-SF1-950
Bracket b
|
53438-SF1-950 |
— | ||
|
5
|
5
53692-SF1-950
Guard
|
53692-SF1-950 |
— | ||
|
6
|
6
53805-SF1-E61 Box compFR. STEERING GEAR (4WS) 0C010099 - 0C018791 |
53805-SF1-E61 |
US $1,340.16 |
||
|
6
|
6
53805-SF1-E63
Box comp
0C018792 - |
53805-SF1-E63 |
— | ||
|
6
|
6
53805-SF1-E60 Box compFR. STEERING GEAR (4WS) 00000000 - 0C010098 |
53805-SF1-E60 |
US $1,340.16 |
||
|
7
|
7
93412-100-160-8 Bolt-washer10X16 |
93412-100-160-8 |
US $0.74 |
||
|
8
|
8
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
US $0.52 |
||
| replacement | |||||
|
8
|
8
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
