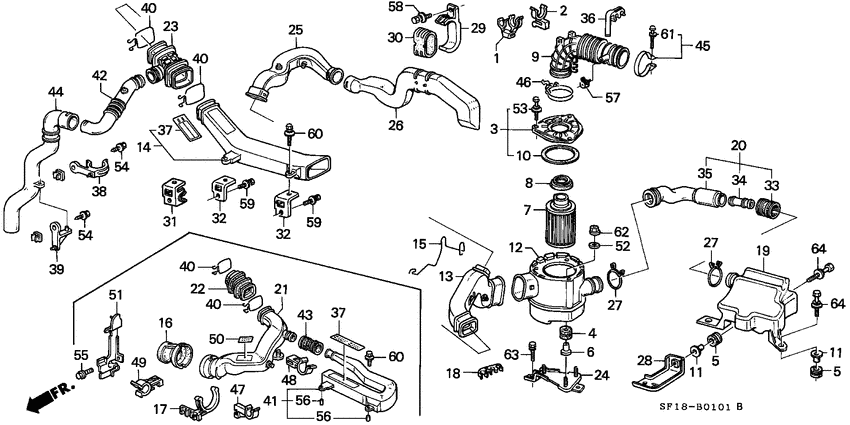

Air cleaner (PGM-F1; 1) Diagram Honda PRELUDE
- Year
- 1988
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- area code
- KQ
- right-hand drive
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16239-PK2-J00
Clamp
|
16239-PK2-J00 |
— | ||
|
3
|
3
17210-PK2-000
Cover assy.
|
17210-PK2-000 |
— | ||
|
4
|
4
17212-PK2-000
Rubber
|
17212-PK2-000 |
— | ||
|
5
|
5
17212-PM7-000
Rubber
0C008600 - |
17212-PM7-000 |
— | ||
|
5
|
5
17212-PE2-000 Rubber aAIR CLEANER CASE MOUNTING 00000000 - 0C008599 |
17212-PE2-000 |
US $3.67 |
||
|
6
|
6
17216-PE2-003 CollarAIR CLEANER(TOYO ROKI) |
17216-PE2-003 |
from US $3.26 |
||
|
7
|
7
17220-PK2-661
Element comp
|
17220-PK2-661 |
— | ||
| replacement | |||||
|
7
|
7
17220-PK2-662
Elmt comp,cleaner
|
17220-PK2-662 |
— | ||
|
8
|
8
17221-PK2-000
Packing
|
17221-PK2-000 |
— | ||
|
9
|
9
17225-PK2-000
Tube
|
17225-PK2-000 |
— | ||
|
10
|
10
17226-PK2-300
Packing
|
17226-PK2-300 |
— | ||
|
11
|
11
17233-PK2-000
Collar
0C008600 - |
17233-PK2-000 |
— | ||
|
11
|
11
17216-PE2-003 CollarAIR CLEANER(TOYO ROKI) 00000000 - 0C008599 |
17216-PE2-003 |
from US $3.26 |
||
|
12
|
12
17241-PK2-000
Case comp.
|
17241-PK2-000 |
— | ||
|
13
|
13
17242-PK2-000
Tube
|
17242-PK2-000 |
— | ||
|
14
|
14
17243-PK2-620
Tube assy
|
17243-PK2-620 |
— | ||
|
15
|
15
17244-PK2-000
Stay
|
17244-PK2-000 |
— | ||
|
18
|
18
17245-PK2-003
Clamp
0C000119 - |
17245-PK2-003 |
— | ||
|
18
|
18
17245-PK2-000
Clamp
00000000 - 0C000118 |
17245-PK2-000 |
— | ||
|
19
|
19
17246-PK2-000
Chamber
|
17246-PK2-000 |
— | ||
|
20
|
20
17247-PK2-000
Tube
|
17247-PK2-000 |
— | ||
|
23
|
23
17249-PK2-000
Tube
|
17249-PK2-000 |
— | ||
|
24
|
24
17251-PK2-000
Stay comp
|
17251-PK2-000 |
— | ||
|
25
|
25
17252-PK2-000
Tube
|
17252-PK2-000 |
— | ||
|
26
|
26
17253-PK2-000
Tube
|
17253-PK2-000 |
— | ||
|
27
|
27
17254-PD6-010 ClipCONNECTING TUBE |
17254-PD6-010 |
US $3.78 |
||
|
28
|
28
17254-PK2-000
Stay
|
17254-PK2-000 |
— | ||
|
29
|
29
17256-PK2-000 Clamp aRR. BRANCH TUBE |
17256-PK2-000 |
US $6.44 |
||
|
30
|
30
17257-PK2-000
Clamp b
|
17257-PK2-000 |
— | ||
|
32
|
32
17258-PK2-000
Stay
|
17258-PK2-000 |
— | ||
|
33
|
33
17260-PK2-000
Tube a
|
17260-PK2-000 |
— | ||
|
34
|
34
17261-PK2-000
Pipe
|
17261-PK2-000 |
— | ||
|
35
|
35
17262-PK2-000
Tube b
|
17262-PK2-000 |
— | ||
|
36
|
36
17269-PK2-000
Clamp
|
17269-PK2-000 |
— | ||
|
37
|
37
17273-PK1-750
Plate
|
17273-PK1-750 |
— | ||
|
38
|
38
17283-PK2-000
Clamp
0C040953 - |
17283-PK2-000 |
— | ||
|
38
|
38
17282-PH3-000
Clamp a
00000000 - 0C040952 |
17282-PH3-000 |
— | ||
|
39
|
39
17282-PK2-000
Clamp a
|
17282-PK2-000 |
— | ||
|
40
|
40
17284-PK2-000
Clip
|
17284-PK2-000 |
— | ||
|
42
|
42
17285-PK2-000
Tube
|
17285-PK2-000 |
— | ||
|
44
|
44
17286-PK2-000
Tube
|
17286-PK2-000 |
— | ||
|
45
|
45
17312-PH9-010
Band
|
17312-PH9-010 |
— | ||
|
46
|
46
17314-PK2-003
Clamp
|
17314-PK2-003 |
— | ||
|
52
|
52
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
53
|
53
90091-PE2-000 Bolt-washer5X25 00000000 - 0C000110 |
90091-PE2-000 |
from US $4 |
||
|
53
|
53
90091-PK2-000 Bolt-washer5X25 0C000111 - |
90091-PK2-000 |
US $2.24 |
||
|
54
|
54
90130-SE0-000 ScrewTAPPING, 6X16 (DACRO COATING) |
90130-SE0-000 |
US $1.89 |
||
|
57
|
57
91405-679-004 ClampTUBE (D17) |
91405-679-004 |
US $3.92 |
||
| replacement | |||||
|
57
|
57
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $6.81 |
||
|
58
|
58
93414-060-120-8 Bolt-washer6X12 |
93414-060-120-8 |
US $1.75 |
||
| replacement | |||||
|
58
|
58
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
US $0.52 |
||
|
59
|
59
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
US $0.52 |
||
| replacement | |||||
|
59
|
59
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
60
|
60
93495-060-180-8 Bolt-washer6X18 |
93495-060-180-8 |
US $0.59 |
||
|
61
|
61
93500-050-280-H ScrewPAN, 5X28 |
93500-050-280-H |
from US $0.44 |
||
|
62
|
62
94050-06080 NutFLANGE, 6MM 00000000 - 0C013125 |
94050-06080 |
from US $0.52 |
||
|
62
|
62
90222-PK2-003 Nut-washer6MM 0C013126 - |
90222-PK2-003 |
US $1.96 |
||
|
63
|
63
95900-060-120-8 BoltFLANGE, 6X12 |
95900-060-120-8 |
US $0.52 |
||
| replacement | |||||
|
63
|
63
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
||
|
64
|
64
95900-060-200-8 BoltFLANGE, 6X20 |
95900-060-200-8 |
US $0.52 |
||
| replacement | |||||
|
64
|
64
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
