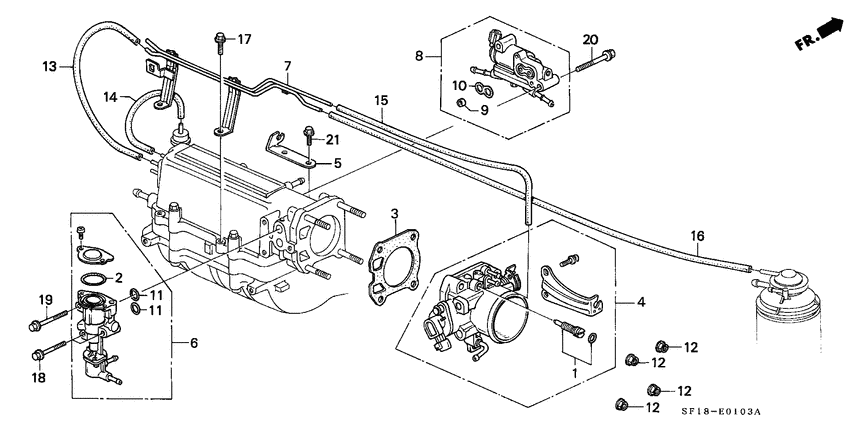

Throttle body (PGM-F1; 2) Diagram Honda PRELUDE
- Year
- 1988
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0SI
- area code
- KQ
- right-hand drive
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PH3-005 Screw set |
16016-PH3-005 |
US $6.58 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
US $4.65 |
||
|
3
|
3
16176-PK2-000
Gasket
|
16176-PK2-000 |
— | ||
|
4
|
4
16400-PK2-633
Throttle Body Assy
|
16400-PK2-633 |
— | ||
|
5
|
5
16411-PK2-000
Stay
|
16411-PK2-000 |
— | ||
|
6
|
6
16500-PK2-005
Valve assy.
|
16500-PK2-005 |
— | ||
|
7
|
7
17400-PK2-000
Pipe
|
17400-PK2-000 |
— | ||
|
8
|
8
36450-PK2-003
Valve assy.
|
36450-PK2-003 |
— | ||
|
10
|
10
36455-PH7-003
Packing
|
36455-PH7-003 |
— | ||
|
11
|
11
91304-PE2-005 O-ring15.8X1.9 |
91304-PE2-005 |
US $2.77 |
||
|
12
|
12
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
13
|
13
95005-351-001-3 Tube3.5X100 (95005-35001-10M) |
95005-351-001-3 |
US $1.18 |
||
|
14
|
14
95005-351-701-0
Tube
|
95005-351-701-0 |
— | ||
|
15
|
15
95005-351-801-M Tube3.5X180 (95005-35001-10M) |
95005-351-801-M |
US $2.37 |
||
|
16
|
16
95005-354-201-3 Tube3.5X420 (95005-35001-10M) |
95005-354-201-3 |
US $4.74 |
||
|
17
|
17
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
17
|
17
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
||
|
18
|
18
95700-060-300-8 BoltFLANGE, 6X30 |
95700-060-300-8 |
US $0.59 |
||
| replacement | |||||
|
18
|
18
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
19
|
19
95700-060-400-8 BoltFLANGE, 6X40 |
95700-060-400-8 |
US $2.01 |
||
| replacement | |||||
|
19
|
19
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
20
|
20
95700-080-500-8 BoltFLANGE, 8X50 |
95700-080-500-8 |
from US $0.81 |
||
| replacement | |||||
|
20
|
20
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
21
|
21
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
