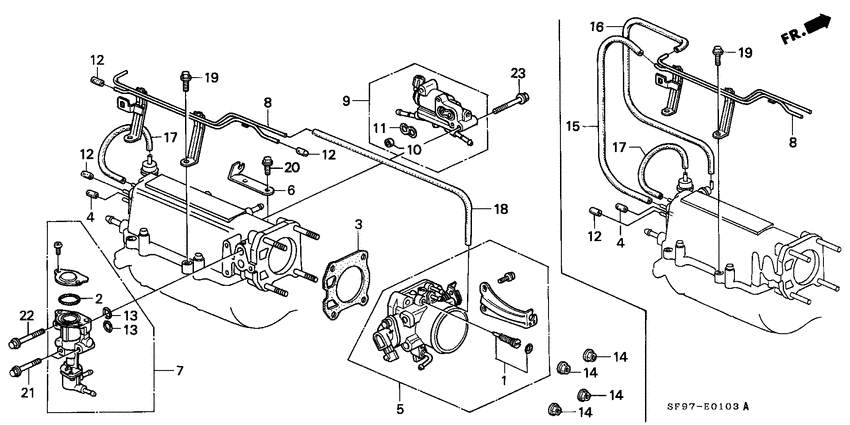

Throttle body (PGM-FI; 2) Diagram Honda PRELUDE
- Year
- 1991
- Model code
- PRELUDE
- Sales region
- General
- Engine
- B20A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 2.0I-16 4WS
- area code
- KE
- right-hand drive
- +
- auto cruise
- +
- 4ws
- +
- front fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-PM6-005 Screw set |
16016-PM6-005 |
from US $7.62 |
||
|
2
|
2
16075-PE2-005 O-ring31.2X1.9 |
16075-PE2-005 |
US $4.65 |
||
|
3
|
3
16176-PT2-004
Gasket
|
16176-PT2-004 |
— | ||
|
4
|
4
16216-676-690
Cap
|
16216-676-690 |
— | ||
|
5
|
5
16400-PK2-E10
Throttle Body Assy
|
16400-PK2-E10 |
— | ||
|
6
|
6
16411-PK2-901
Stay
|
16411-PK2-901 |
— | ||
|
7
|
7
16500-PK2-000
Valve assy.
|
16500-PK2-000 |
— | ||
|
8
|
8
17400-PK2-751
Pipe
|
17400-PK2-751 |
— | ||
|
9
|
9
36450-PK2-023
Valve assy.
|
36450-PK2-023 |
— | ||
|
10
|
10
36454-PS4-003 Filter compELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
36454-PS4-003 |
from US $3.33 |
||
|
11
|
11
36455-PR4-A01
Packing
|
36455-PR4-A01 |
— | ||
| replacement | |||||
|
11
|
11
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.51 |
||
|
12
|
12
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $2.37 |
||
|
13
|
13
91304-PE2-005 O-ring15.8X1.9 |
91304-PE2-005 |
US $2.77 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
17
|
17
95005-351-801-M Tube3.5X180 (95005-35001-10M) |
95005-351-801-M |
US $2.37 |
||
|
18
|
18
95005-351-901-D Tube3.5X190 (95005-35001-10M) |
95005-351-901-D |
US $2.37 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
22
|
22
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
23
|
23
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
