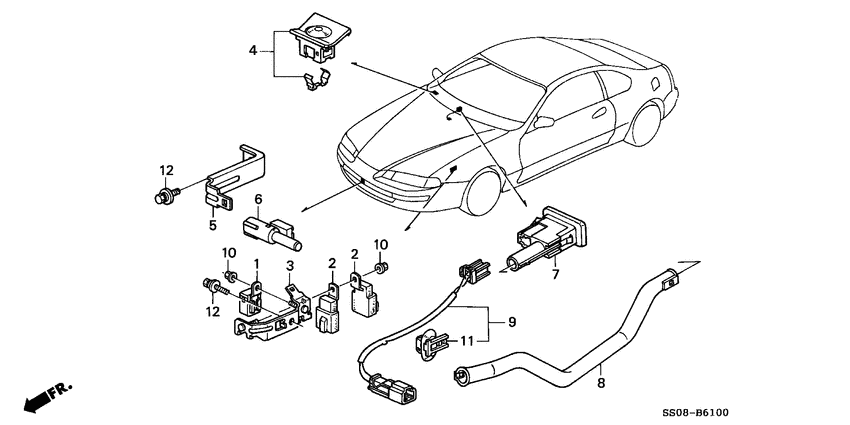

Air conditioner (SENSOR) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SI VTEC
- abs
- +
- area code
- KU
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
2
|
2
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
3
|
3
80491-SS0-020
Bracket
|
80491-SS0-020 |
— | ||
|
4
|
4
80510-SS0-941ZA
Sensor
|
80510-SS0-941ZA |
— | ||
|
5
|
5
80521-SS0-940 BracketAMBIENT SENSOR |
80521-SS0-940 |
US $4.34 |
||
|
6
|
6
80525-SS0-942 SensorAMBIENT |
80525-SS0-942 |
US $28.03 |
||
|
7
|
7
80530-SS0-941ZA
Sensor assy
|
80530-SS0-941ZA |
— | ||
|
8
|
8
80541-SS0-941
Hose
|
80541-SS0-941 |
— | ||
|
9
|
9
80656-SS0-940
Sub cord
|
80656-SS0-940 |
— | ||
|
10
|
10
90308-SD2-A00
Nut
|
90308-SD2-A00 |
— | ||
|
11
|
11
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
12
|
12
93403-060-160-5 Bolt-washer6X16 |
93403-060-160-5 |
US $0.65 |
