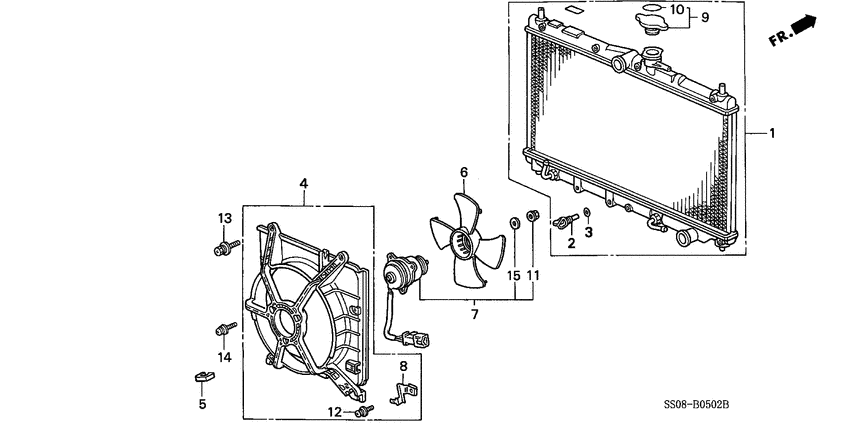

Radiator (SAK) Diagram Honda PRELUDE
- Year
- 1995
- Model code
- PRELUDE
- Sales region
- General
- Engine
- H22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI VTEC
- abs
- +
- area code
- KU
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-PT1-907
Radiator comp
|
19010-PT1-907 |
— | ||
|
2
|
2
19011-PV0-005 CockDRAIN (SAK) |
19011-PV0-005 |
US $7.28 |
||
|
3
|
3
19012-PV0-005 O-ringSAK |
19012-PV0-005 |
US $2.17 |
||
|
4
|
4
19015-P13-903
Shroud comp.
|
19015-P13-903 |
— | ||
|
6
|
6
19020-PT0-305 Fan setCOOLING (MITSUBA) |
19020-PT0-305 |
US $36.22 |
||
|
7
|
7
19016-PT0-305
Motor set
|
19016-PT0-305 |
— | ||
|
8
|
8
19033-P13-902
Clamp
|
19033-P13-902 |
— | ||
|
9
|
9
19045-PV3-005
Cap comp
|
19045-PV3-005 |
— | ||
|
10
|
10
19046-PV1-000 SealCAP |
19046-PV1-000 |
US $1.63 |
||
|
11
|
11
90041-PG6-004 NutHEX., 5MM(MITSUBA) |
90041-PG6-004 |
from US $1.47 |
||
|
12
|
12
90041-PV0-005 Screw-washer4X10 |
90041-PV0-005 |
US $1.82 |
||
|
13
|
13
90042-PV0-005 Bolt-washer6X16 |
90042-PV0-005 |
US $1.82 |
||
|
14
|
14
90050-PV0-005 Screw-washer4X12 |
90050-PV0-005 |
US $1.26 |
||
|
15
|
15
90403-PA0-004 WasherPLAIN, 7MM (MITSUBA) |
90403-PA0-004 |
US $8.28 |
