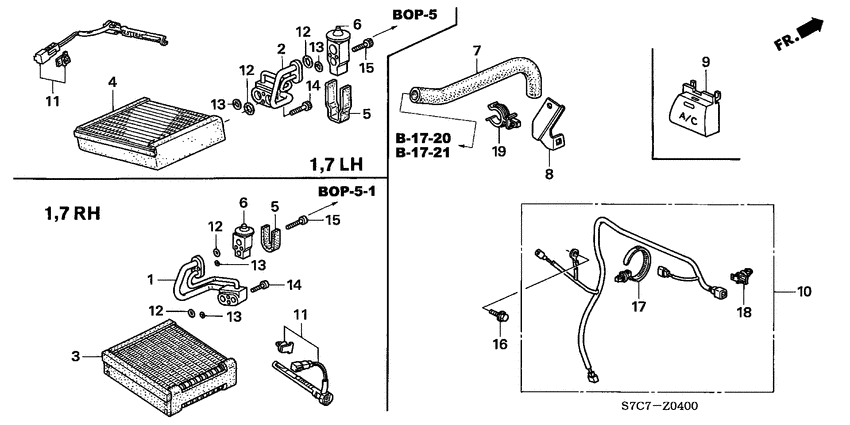

Air conditioner (COOLING UNIT; 1.7L) Diagram Honda STREAM
- Year
- 2005
- Model code
- STREAM
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 5
- grade
- ES
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- navigation
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80212-S7A-003 Pipe assy. |
80212-S7A-003 |
US $29.44 |
||
|
3
|
3
80215-S7A-003 Evaporator comp. |
80215-S7A-003 |
US $375.04 |
||
|
5
|
5
80219-S5A-003 SealEXPANSION VALVE |
80219-S5A-003 |
US $3.50 |
||
|
6
|
6
80220-S7A-003
Valve
|
80220-S7A-003 |
— | ||
|
7
|
7
80271-S7A-000 HoseDRAIN |
80271-S7A-000 |
US $7.98 |
||
|
8
|
8
80275-S7A-000
Stay
|
80275-S7A-000 |
— | ||
|
9
|
9
80411-S7A-951ZA Knob comp. *nh561l*A/C |
80411-S7A-951ZA |
US $8.82 |
||
|
10
|
10
80460-S7A-000
Harness
|
80460-S7A-000 |
— | ||
|
11
|
11
80560-S5A-941 Sensor assyEVAPORATOR |
80560-S5A-941 |
US $17.79 |
||
|
12
|
12
80871-S5A-003 O-ring5/8" |
80871-S5A-003 |
from US $2.28 |
||
|
13
|
13
80872-S5A-003 O-ring1/2" |
80872-S5A-003 |
from US $0.76 |
||
|
14
|
14
90125-S5A-003 BoltSOCKET, 5X30 |
90125-S5A-003 |
US $1.19 |
||
|
15
|
15
90126-S5A-003 BoltSOCKET, 5X40 |
90126-S5A-003 |
US $1.33 |
||
|
16
|
16
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
17
|
17
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
18
|
18
91565-SD5-003 ClipCOUPLER(NATURAL) |
91565-SD5-003 |
US $1.61 |
||
|
19
|
19
91597-S5H-T31 ClipDRAIN TUBE |
91597-S5H-T31 |
US $1.82 |
