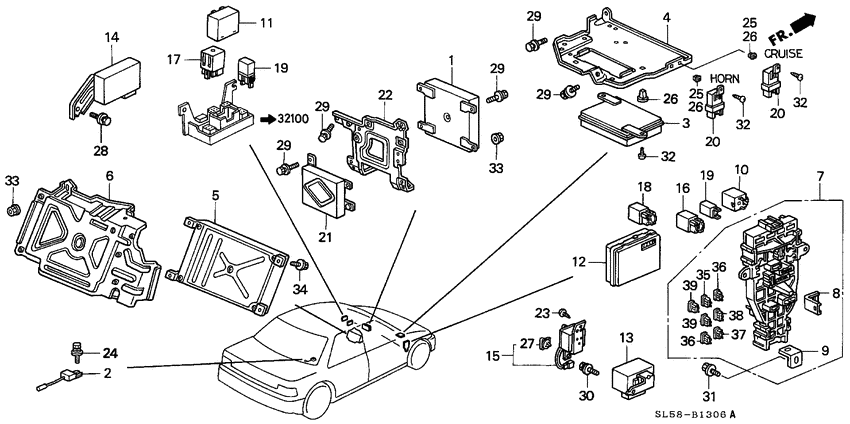

Control unit (CABIN; 2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-PW7-J02
Control unit
|
28100-PW7-J02 |
— | ||
|
2
|
2
30505-SL5-003
Condenser comp.
|
30505-SL5-003 |
— | ||
|
3
|
3
36700-SL5-J21
Controller
|
36700-SL5-J21 |
— | ||
|
4
|
4
36701-SL5-000
Bracket
|
36701-SL5-000 |
— | ||
|
5
|
5
37820-PV1-J53
Control module
|
37820-PV1-J53 |
— | ||
|
6
|
6
37821-PV0-J00
Cover comp.
|
37821-PV0-J00 |
— | ||
|
7
|
7
38200-SL4-N85
Box assy
|
38200-SL4-N85 |
— | ||
|
8
|
8
38202-SL4-013
Bracket b
|
38202-SL4-013 |
— | ||
|
9
|
9
38203-SL4-013
Bracket a
|
38203-SL4-013 |
— | ||
|
10
|
10
38300-SE3-003 Relay assyTURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
38300-SE3-003 |
US $42.50 |
||
|
11
|
11
38340-SL4-901
Control unit
|
38340-SL4-901 |
— | ||
|
12
|
12
38600-SL4-013
Control unit
|
38600-SL4-013 |
— | ||
|
13
|
13
39400-SL4-003
Relay assy
|
39400-SL4-003 |
— | ||
|
14
|
14
39500-SL4-013
Control assy.
|
39500-SL4-013 |
— | ||
|
16
|
16
39792-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7410) |
39792-SE0-003 |
US $29.44 |
||
|
16
|
16
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
17
|
17
39792-SL4-003 Relay assyPOWER (4P NO 305) (DENSO)(056700-9260) |
39792-SL4-003 |
US $39.42 |
||
|
18
|
18
39792-SM4-003 Relay assyPOWER (4P NO.305) (DENSO) (056700-9340) |
39792-SM4-003 |
US $35.20 |
||
|
19
|
19
39794-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2203) |
39794-SE0-004 |
US $20.61 |
||
|
19
|
19
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
20
|
20
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $64.78 |
||
|
20
|
20
39797-SE0-003
Relay assy
|
39797-SE0-003 |
— | ||
| replacement | |||||
|
20
|
20
39797-SE0-004 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39797-SE0-004 |
from US $64.78 |
||
|
21
|
21
80610-SL5-003 Control unitAIR CONDITIONER |
80610-SL5-003 |
US $718.08 |
||
|
21
|
21
80610-SL5-013
Control unit
|
80610-SL5-013 |
— | ||
|
22
|
22
80615-SL4-000
Bracket
|
80615-SL4-000 |
— | ||
|
24
|
24
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
26
|
26
90662-693-003 GrommetSCREW, 4MM (BLUE) 00000000 - 0C100125 |
90662-693-003 |
US $1.68 |
||
|
26
|
26
90665-SM4-000 GrommetSCREW, 4MM (YELLOW) 0C100126 - |
90665-SM4-000 |
US $1.26 |
||
|
28
|
28
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
29
|
29
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
32
|
32
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
35
|
35
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
36
|
36
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
37
|
37
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
38
|
38
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
39
|
39
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
