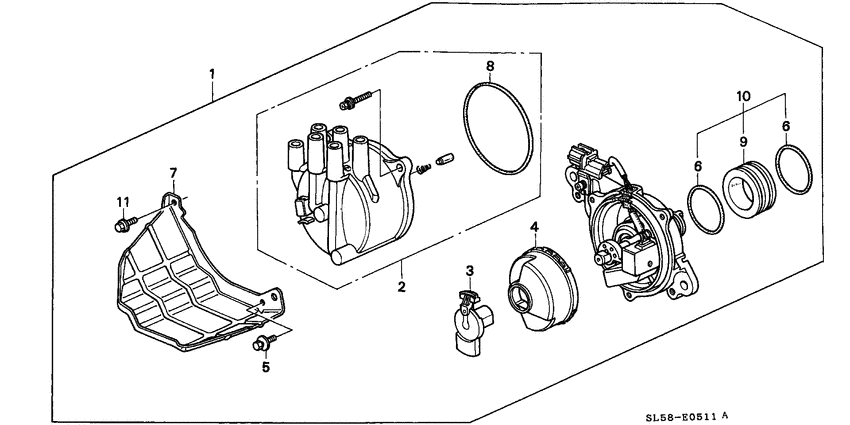

Distributor (TEC; 2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PV0-J02
Distributor assy
|
30100-PV0-J02 |
— | ||
|
2
|
2
30102-PV3-004
Cap assy.
|
30102-PV3-004 |
— | ||
|
3
|
3
30103-PV0-006
Head comp
|
30103-PV0-006 |
— | ||
|
4
|
4
30107-PV0-006
Cover
|
30107-PV0-006 |
— | ||
|
5
|
5
30109-PV1-A02
Bolt-washer
|
30109-PV1-A02 |
— | ||
|
6
|
6
30110-PN3-006
O-ring
|
30110-PN3-006 |
— | ||
| replacement | |||||
|
6
|
6
91305-PN4-003 O-ring37.7X3.5 (ARAI) |
91305-PN4-003 |
from US $2.86 |
||
|
7
|
7
30119-PV0-J02
Cover assy.
|
30119-PV0-J02 |
— | ||
|
8
|
8
30132-PV1-A02
O-ring
|
30132-PV1-A02 |
— | ||
|
10
|
10
30205-P64-006 CollarDISTRIBUTOR |
30205-P64-006 |
US $17.95 |
||
|
11
|
11
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
