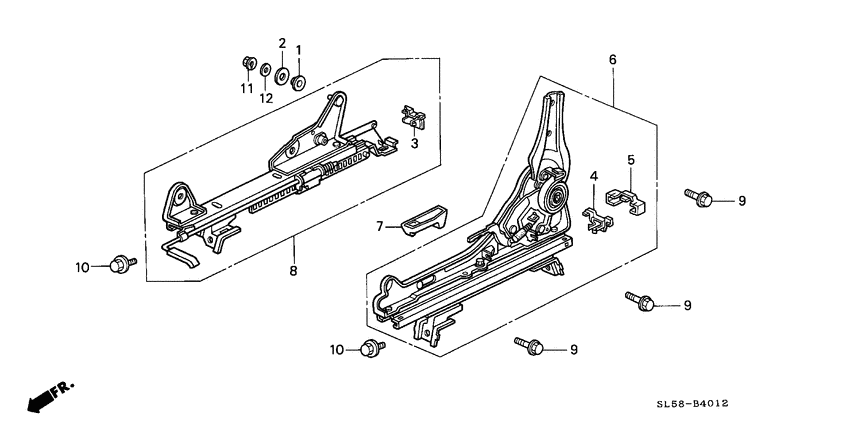

Front seat components (3) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77208-SA6-004
Bush
|
77208-SA6-004 |
— | ||
|
2
|
2
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
3
|
3
81261-SK7-013 CapSLIDE RAIL END |
81261-SK7-013 |
US $3.92 |
||
|
4
|
4
81261-SM4-J01 CapRAIL END LOWER |
81261-SM4-J01 |
US $3.78 |
||
|
5
|
5
81262-SM4-J01 CapRAIL END UPPER |
81262-SM4-J01 |
US $3.78 |
||
|
6
|
6
81550-SL6-J01
Slide comp.
|
81550-SL6-J01 |
— | ||
|
7
|
7
81631-SM4-J03ZB
Knob
|
81631-SM4-J03ZB |
— | ||
|
8
|
8
81670-SL4-J01 AdjusterL. INNER SLIDE |
81670-SL4-J01 |
US $85.12 |
||
|
9
|
9
93402-100-250-7 Bolt-washer10X25 |
93402-100-250-7 |
US $0.81 |
||
|
10
|
10
93405-100-200-7 Bolt-washer10X20 |
93405-100-200-7 |
US $0.86 |
||
|
11
|
11
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
