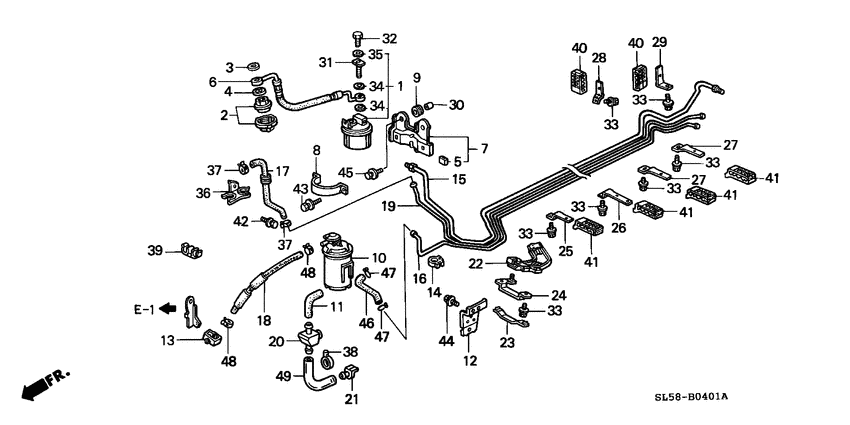

Fuel pipe (2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SL5-932
Strainer set
0C100125 - |
16010-SL5-932 |
— | ||
|
1
|
1
16010-SL5-931
Strainer set
00000000 - 0C100124 |
16010-SL5-931 |
— | ||
|
2
|
2
16680-PE2-003 Damper assy.PULSATION |
16680-PE2-003 |
US $39.30 |
||
|
3
|
3
16704-PD1-003
Washer
|
16704-PD1-003 |
— | ||
|
4
|
4
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
5
|
5
16712-SL4-930
Cushion
|
16712-SL4-930 |
— | ||
|
6
|
6
16720-PV0-014
Hose comp. b
|
16720-PV0-014 |
— | ||
|
7
|
7
16918-SL4-932
Stay
|
16918-SL4-932 |
— | ||
|
8
|
8
16919-SL4-930
Band
|
16919-SL4-930 |
— | ||
|
9
|
9
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
10
|
10
17300-SM4-931
Canister assy
|
17300-SM4-931 |
— | ||
|
11
|
11
17357-SL5-010
Tube
|
17357-SL5-010 |
— | ||
|
12
|
12
17358-SL4-000
Bracket
|
17358-SL4-000 |
— | ||
|
13
|
13
17361-PV0-003
Clamp
|
17361-PV0-003 |
— | ||
|
14
|
14
17556-SL4-023 ClipFUEL PIPE (BLACK) |
17556-SL4-023 |
US $3.11 |
||
|
15
|
15
17700-SL5-930
Pipe comp
|
17700-SL5-930 |
— | ||
|
16
|
16
17720-SL4-000
Pipe comp
|
17720-SL4-000 |
— | ||
|
17
|
17
17723-SL4-930 HosePRESSURE REGULATOR RETURN |
17723-SL4-930 |
US $36.99 |
||
|
18
|
18
17725-SL4-930
Hose
|
17725-SL4-930 |
— | ||
|
19
|
19
17740-SL4-930
Pipe comp
|
17740-SL4-930 |
— | ||
|
20
|
20
17742-SL5-A32
Joint
|
17742-SL5-A32 |
— | ||
|
21
|
21
17743-SM4-003 CapDRAIN TUBE |
17743-SM4-003 |
US $3.26 |
||
|
22
|
22
17752-SL4-033
Protector
|
17752-SL4-033 |
— | ||
|
23
|
23
17756-SL4-013
Lid
|
17756-SL4-013 |
— | ||
|
24
|
24
17761-SL5-A00
Stay a
|
17761-SL5-A00 |
— | ||
|
25
|
25
17762-SL4-000
Stay b
|
17762-SL4-000 |
— | ||
|
26
|
26
17763-SL4-000
Stay c
|
17763-SL4-000 |
— | ||
|
27
|
27
17764-SL4-000
Stay d
|
17764-SL4-000 |
— | ||
|
28
|
28
17765-SL4-000
Stay e
|
17765-SL4-000 |
— | ||
|
29
|
29
17766-SL4-000
Stay f
|
17766-SL4-000 |
— | ||
|
30
|
30
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
31
|
31
90008-PD6-010
Bolt
|
90008-PD6-010 |
— | ||
| replacement | |||||
|
31
|
31
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
32
|
32
90009-PE2-010
Bolt
|
90009-PE2-010 |
— | ||
| replacement | |||||
|
32
|
32
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
33
|
33
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
34
|
34
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
35
|
35
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
36
|
36
90681-SL4-930
Clamp
|
90681-SL4-930 |
— | ||
|
37
|
37
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
38
|
38
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
39
|
39
91595-SL4-931
Clip
|
91595-SL4-931 |
— | ||
|
40
|
40
91598-SL4-003
Clamp b
|
91598-SL4-003 |
— | ||
|
41
|
41
91599-SL4-003
Clamp a
|
91599-SL4-003 |
— | ||
|
42
|
42
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
43
|
43
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
44
|
44
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
45
|
45
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
46
|
46
95001-551-103-0
Tube
|
95001-551-103-0 |
— | ||
|
47
|
47
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
48
|
48
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
49
|
49
95003-400-256-0 TubeVINYL, 12X16X250 (95003-40001-60M) |
95003-400-256-0 |
US $2.66 |
||
