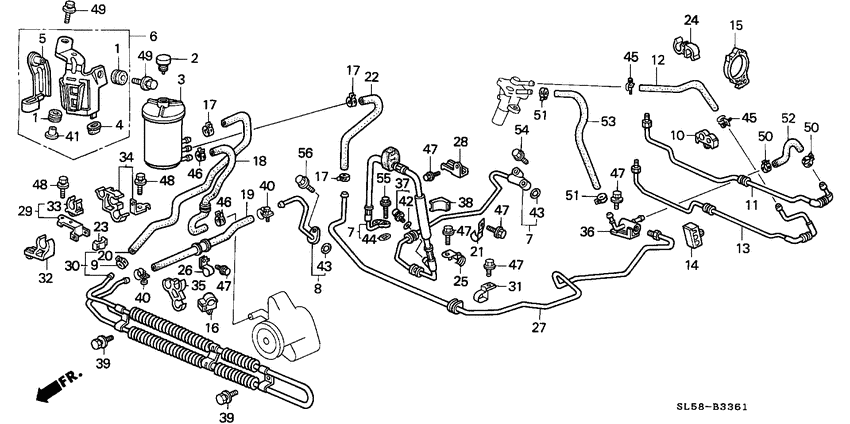

Power steering lines (2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
2
|
2
53697-SB3-952 CapOIL TANK |
53697-SB3-952 |
from US $8.28 |
||
|
3
|
3
53701-SL5-A02
Tank comp.
|
53701-SL5-A02 |
— | ||
|
4
|
4
53709-SL5-A00
Cushion
|
53709-SL5-A00 |
— | ||
|
5
|
5
53710-SL5-A00
Sub bracket
|
53710-SL5-A00 |
— | ||
|
6
|
6
53711-SL5-A01
Bracket assy
|
53711-SL5-A01 |
— | ||
|
7
|
7
53713-SL5-003
Hose comp.
|
53713-SL5-003 |
— | ||
|
8
|
8
53720-SL5-000
Pipe comp
|
53720-SL5-000 |
— | ||
|
9
|
9
53721-SM4-013 Clamp d15.5MM |
53721-SM4-013 |
US $9.44 |
||
|
10
|
10
53723-SL5-003
Clip
|
53723-SL5-003 |
— | ||
|
11
|
11
53724-SL5-020
Pipe comp
|
53724-SL5-020 |
— | ||
|
12
|
12
53725-SL4-951
Hose
|
53725-SL4-951 |
— | ||
|
13
|
13
53726-SL5-020
Pipe comp
|
53726-SL5-020 |
— | ||
|
14
|
14
53728-SL5-003 ClipRETURN PIPE, 6MM |
53728-SL5-003 |
US $2.94 |
||
|
15
|
15
53729-SL5-003
Clip
|
53729-SL5-003 |
— | ||
|
16
|
16
53729-SM4-G61 ClipDRAIN HOSE |
53729-SM4-G61 |
US $3.01 |
||
|
17
|
17
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $4.74 |
||
|
18
|
18
53731-SL5-A01
Tube
|
53731-SL5-A01 |
— | ||
|
19
|
19
53734-SL5-010
Hose
|
53734-SL5-010 |
— | ||
|
20
|
20
53735-SL5-A00
Tube
|
53735-SL5-A00 |
— | ||
|
21
|
21
53736-SL4-950
Holder b
|
53736-SL4-950 |
— | ||
|
22
|
22
53737-SL5-A00
Tube
|
53737-SL5-A00 |
— | ||
|
23
|
23
53738-SL5-A01
Clip
|
53738-SL5-A01 |
— | ||
|
24
|
24
53740-SE0-953 ClipSENSOR HOSE |
53740-SE0-953 |
from US $1.63 |
||
|
25
|
25
53741-SL4-950
Holder c
|
53741-SL4-950 |
— | ||
|
26
|
26
53742-SL4-951
Clamp
|
53742-SL4-951 |
— | ||
|
27
|
27
53744-SL5-000
Pipe comp
|
53744-SL5-000 |
— | ||
|
28
|
28
53745-SL4-951
Stay
|
53745-SL4-951 |
— | ||
|
29
|
29
53750-SL5-A00
Stay assy
|
53750-SL5-A00 |
— | ||
|
30
|
30
53765-SL5-A01 Cooler compPOWER STEERING OIL |
53765-SL5-A01 |
US $143.36 |
||
|
31
|
31
53767-SL5-A00
Clamp a
|
53767-SL5-A00 |
— | ||
|
32
|
32
53771-SL5-A01
Clip A
|
53771-SL5-A01 |
— | ||
|
33
|
33
53772-SL5-A01 Clip bPOWER STEERING PIPE |
53772-SL5-A01 |
US $1.68 |
||
|
34
|
34
53775-SL5-A00
Stay assy
|
53775-SL5-A00 |
— | ||
|
35
|
35
53776-SL5-A01
Clip
|
53776-SL5-A01 |
— | ||
|
36
|
36
53777-SL4-950
Connector
|
53777-SL4-950 |
— | ||
|
37
|
37
56490-PT0-023
Switch assy
|
56490-PT0-023 |
— | ||
|
38
|
38
80361-SE0-000
Holder
|
80361-SE0-000 |
— | ||
|
39
|
39
90188-SM4-000 BoltFLANGE, 6X12 (BLACK) |
90188-SM4-000 |
US $1.54 |
||
|
40
|
40
90635-SM4-A01
Clip
|
90635-SM4-A01 |
— | ||
| replacement | |||||
|
40
|
40
90635-SM4-A02 ClipOIL HOSE (MEIJI) |
90635-SM4-A02 |
US $5.37 |
||
|
41
|
41
90854-SL4-950
Collar
|
90854-SL4-950 |
— | ||
|
42
|
42
91304-PA6-003 O-ring7.8X1.9 |
91304-PA6-003 |
from US $1.92 |
||
|
43
|
43
91370-SB3-950 O-ring8.8X1.9 |
91370-SB3-950 |
from US $1.89 |
||
|
44
|
44
91370-SM4-004 O-ring11X1.9 (ARAI) |
91370-SM4-004 |
US $6.02 |
||
|
44
|
44
91370-SM4-003
O-ring
|
91370-SM4-003 |
— | ||
| replacement | |||||
|
44
|
44
91370-SM4-004 O-ring11X1.9 (ARAI) |
91370-SM4-004 |
US $6.02 |
||
|
45
|
45
91410-SA1-950 ClipSENSOR HOSE |
91410-SA1-950 |
US $3.43 |
||
|
46
|
46
91462-SA5-950 Clamp d19MM |
91462-SA5-950 |
from US $2.17 |
||
|
47
|
47
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
48
|
48
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.47 |
||
|
49
|
49
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
50
|
50
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
51
|
51
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
52
|
52
95005-551-702-0 Tube5.3X170 (95005-55001-20M (95005-55001-20M) |
95005-551-702-0 |
US $2.37 |
||
|
53
|
53
95005-752-702-0
Tube
|
95005-752-702-0 |
— | ||
|
54
|
54
95801-060-220-8 BoltFLANGE, 6X22 |
95801-060-220-8 |
from US $0.62 |
||
| replacement | |||||
|
54
|
54
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
55
|
55
95801-060-280-8 BoltFLANGE, 6X28 |
95801-060-280-8 |
from US $0.59 |
||
|
56
|
56
95801-080-200-8 BoltFLANGE, 8X20 |
95801-080-200-8 |
US $0.59 |
||
| replacement | |||||
|
56
|
56
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.52 |
||
