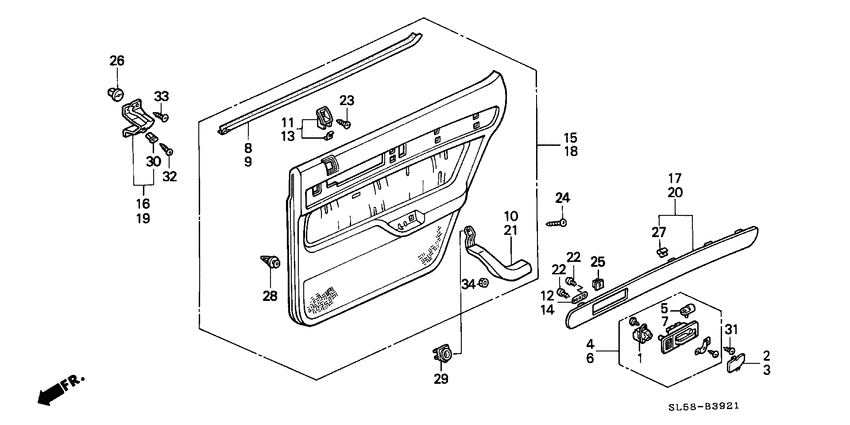

Rear door lining (2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35765-SL4-013
Switch assy
|
35765-SL4-013 |
— | ||
|
2
|
2
72121-SL4-003
Cap
|
72121-SL4-003 |
— | ||
|
3
|
3
72161-SL4-003
Cap
|
72161-SL4-003 |
— | ||
|
4
|
4
72620-SL4-033
Handle assy
|
72620-SL4-033 |
— | ||
|
5
|
5
72634-SM4-003
Snap
|
72634-SM4-003 |
— | ||
|
6
|
6
72660-SL4-033
Handle assy
|
72660-SL4-033 |
— | ||
|
7
|
7
72674-SM4-003
Snap
|
72674-SM4-003 |
— | ||
|
8
|
8
72835-SL4-003
Weatherstrip
|
72835-SL4-003 |
— | ||
|
9
|
9
72875-SL4-003
Weatherstrip
|
72875-SL4-003 |
— | ||
|
10
|
10
83491-SL4-000ZA
Grip
|
83491-SL4-000ZA |
— | ||
|
11
|
11
83508-SL4-000ZA
Cover
|
83508-SL4-000ZA |
— | ||
|
12
|
12
83521-SL4-900
Bracket
|
83521-SL4-900 |
— | ||
|
13
|
13
83558-SL4-000ZA
Cover
|
83558-SL4-000ZA |
— | ||
|
14
|
14
83571-SL4-900
Bracket
|
83571-SL4-900 |
— | ||
|
15
|
15
83700-SL4-930ZC
Lining
|
83700-SL4-930ZC |
— | ||
|
16
|
16
83711-SL4-000ZZ
Bracket
|
83711-SL4-000ZZ |
— | ||
|
17
|
17
83719-SL5-A10ZC
Garnish
|
83719-SL5-A10ZC |
— | ||
|
18
|
18
83750-SL4-930ZC
Lining
|
83750-SL4-930ZC |
— | ||
|
19
|
19
83761-SL4-000ZZ
Bracket
|
83761-SL4-000ZZ |
— | ||
|
20
|
20
83769-SL5-A10ZC
Garnish
|
83769-SL5-A10ZC |
— | ||
|
21
|
21
83791-SL4-000ZA
Grip
|
83791-SL4-000ZA |
— | ||
|
22
|
22
90101-SA4-000
Screw
|
90101-SA4-000 |
— | ||
| replacement | |||||
|
22
|
22
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
23
|
23
90122-SL4-000
Screw
|
90122-SL4-000 |
— | ||
|
24
|
24
90137-SL4-003 ScrewTAPPING, 6X20 |
90137-SL4-003 |
US $1.82 |
||
|
25
|
25
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
26
|
26
90665-SM4-000 GrommetSCREW, 4MM (YELLOW) 0C100126 - |
90665-SM4-000 |
US $1.26 |
||
|
26
|
26
90662-693-003 GrommetSCREW, 4MM (BLUE) 00000000 - 0C100125 |
90662-693-003 |
US $1.68 |
||
|
27
|
27
90667-SL4-003
Clip
|
90667-SL4-003 |
— | ||
|
28
|
28
91560-SL4-003 ClipDOOR LINING |
91560-SL4-003 |
US $2.60 |
||
|
29
|
29
91561-SE3-003 GrommetSCREW, 6MM |
91561-SE3-003 |
US $2.10 |
||
|
30
|
30
91638-SD4-003
Grommet
|
91638-SD4-003 |
— | ||
|
31
|
31
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
|
32
|
32
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
33
|
33
93903-45280 ScrewTAPPING, 5X12 |
93903-45280 |
from US $0.37 |
||
|
34
|
34
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.22 |
||
