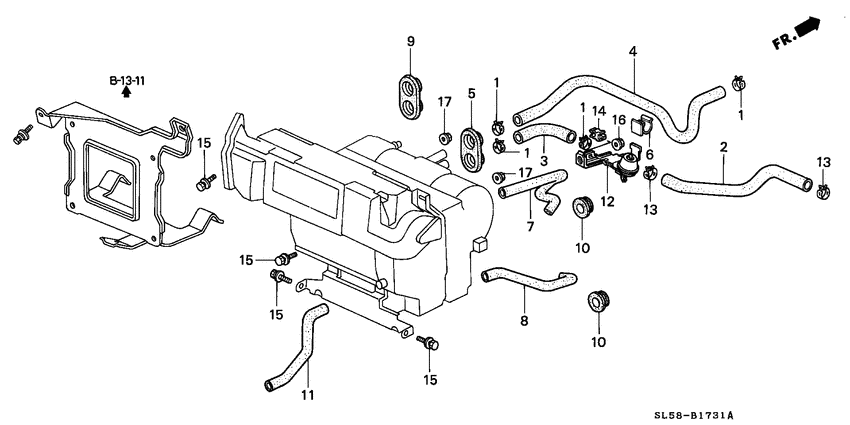

Water valve (2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $4.23 |
||
|
2
|
2
79721-SL6-N00
Hose a
|
79721-SL6-N00 |
— | ||
|
3
|
3
79722-SL4-000
Hose b
|
79722-SL4-000 |
— | ||
|
4
|
4
79725-SL4-000
Hose
|
79725-SL4-000 |
— | ||
|
5
|
5
79731-SL4-000
Grommet
|
79731-SL4-000 |
— | ||
|
6
|
6
79746-SL4-003 ClampHEATER HOSE |
79746-SL4-003 |
US $3.48 |
||
|
7
|
7
80271-SL4-000
Hose a
|
80271-SL4-000 |
— | ||
|
8
|
8
80272-SL4-010
Hose b
|
80272-SL4-010 |
— | ||
|
9
|
9
80276-SL4-000
Grommet
|
80276-SL4-000 |
— | ||
|
10
|
10
80381-SE0-000
Grommet
|
80381-SE0-000 |
— | ||
|
11
|
11
80542-SL4-000
Hose
|
80542-SL4-000 |
— | ||
|
12
|
12
80720-SL4-013
Valve assy.
|
80720-SL4-013 |
— | ||
|
13
|
13
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
13
|
13
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $4.23 |
||
|
14
|
14
91531-SL4-J01 ClampTUBE, 3.5 |
91531-SL4-J01 |
US $1.82 |
||
|
15
|
15
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
