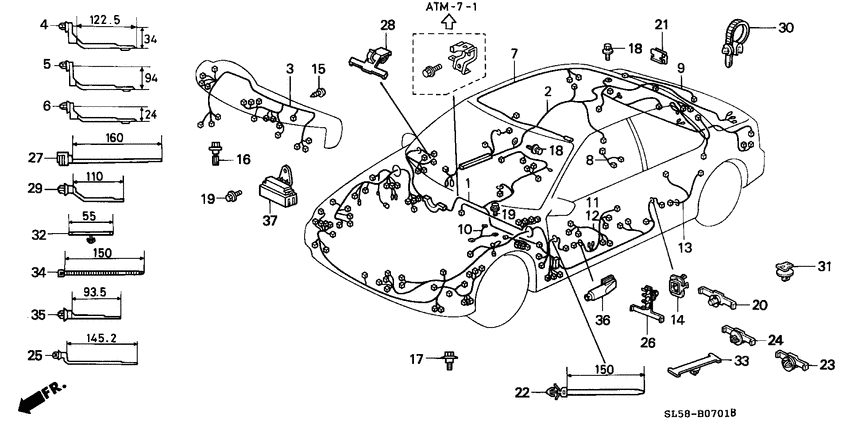

Wire harness (2) Diagram Honda VIGOR
- Year
- 1994
- Model code
- VIGOR
- Sales region
- General
- Engine
- G25A
- transmission
- 4AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SL5-Z32
Harness
|
32100-SL5-Z32 |
— | ||
|
2
|
2
32108-SL5-922
Harness
|
32108-SL5-922 |
— | ||
|
3
|
3
32117-SL5-J62
Harness
|
32117-SL5-J62 |
— | ||
|
4
|
4
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
5
|
5
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $4.14 |
||
|
6
|
6
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
7
|
7
32155-SL5-900
Cord
|
32155-SL5-900 |
— | ||
|
8
|
8
32170-SL5-000
Cord
|
32170-SL5-000 |
— | ||
|
9
|
9
32202-SL4-000
Cord
|
32202-SL4-000 |
— | ||
|
10
|
10
32610-SL5-000
Cable
|
32610-SL5-000 |
— | ||
|
11
|
11
32751-SL5-901
Harness
|
32751-SL5-901 |
— | ||
|
12
|
12
32752-SL5-000
Harness
|
32752-SL5-000 |
— | ||
|
13
|
13
32753-SL4-901
Harness
|
32753-SL4-901 |
— | ||
|
14
|
14
32758-SE7-300
Grommet
|
32758-SE7-300 |
— | ||
|
15
|
15
90101-SA4-000
Screw
|
90101-SA4-000 |
— | ||
| replacement | |||||
|
15
|
15
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
16
|
16
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
17
|
17
90144-SA0-020
Bolt
|
90144-SA0-020 |
— | ||
| replacement | |||||
|
17
|
17
90111-SM4-003 BoltBUMPER |
90111-SM4-003 |
from US $2.19 |
||
|
18
|
18
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
19
|
19
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.96 |
||
|
20
|
20
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
21
|
21
90660-SB2-000 ClipCORD |
90660-SB2-000 |
from US $3.33 |
||
|
22
|
22
90676-SA8-003 BandWIRE HARNESS, 150MM (BLUE) |
90676-SA8-003 |
from US $2.24 |
||
|
23
|
23
91506-SA5-000 ClipWIRE HARNESS (BLACK) (WITH SEAL) |
91506-SA5-000 |
US $2.38 |
||
|
24
|
24
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
25
|
25
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
26
|
26
91547-SF1-003
Clip
|
91547-SF1-003 |
— | ||
|
27
|
27
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $3.91 |
||
|
28
|
28
91550-SM4-003 ClipWIRE HARNESS |
91550-SM4-003 |
US $2.24 |
||
|
29
|
29
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $3.40 |
||
|
30
|
30
91554-SH3-003 BandWIRE HARNESS (NATURAL) (100.5MM) |
91554-SH3-003 |
US $2.52 |
||
|
31
|
31
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.22 |
||
|
32
|
32
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
33
|
33
91560-SE0-003 Band aHARNESS (NATURAL) |
91560-SE0-003 |
from US $2.24 |
||
|
35
|
35
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
36
|
36
91638-SL4-003
Grommet
|
91638-SL4-003 |
— | ||
|
37
|
37
91786-SR3-003 BarJOINT (10P) |
91786-SR3-003 |
US $6.72 |
||
