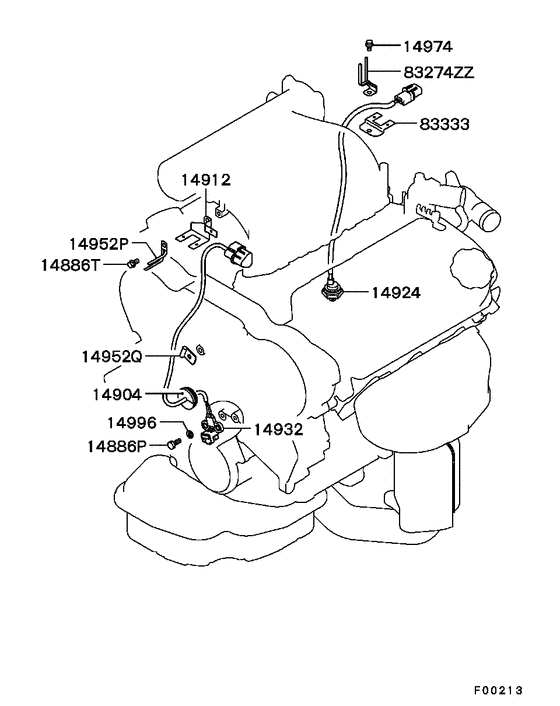

Electrical control (ALL (CRANK ANGLE SENSOR ETC.)) Diagram Mitsubishi DIAMANTE
- Year
- 2002 - 2005
- Sales region
- Japan
- Note
- 25V-SE,S4FA/T
- drive
- 2WD
- transmission
- S4FA/T
- grade
- 25V-SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14886P
|
14886P
MD182842
BOLT, CRANK ANGLE SENSOR
|
MD182842 |
— | ||
| replacement | |||||
|
14886P
|
14886P
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.07 |
||
|
14886T
|
14886T
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
14904
|
14904
MD183490 GROMMET, CRANK ANGLE SENSOR |
MD183490 |
US $5.88 |
||
|
14912
|
14912
MD364694 BRACKET, CRANK ANGLE SENSOR CONNECTOR |
MD364694 |
US $7.10 |
||
|
14924
|
14924
MD165641 SENSOR, ENG CONTROL KNOCK |
MD165641 |
US $140.90 |
||
|
14932
|
14932
MD303088 SENSOR, ENG CRANK ANGLE |
MD303088 |
from US $118.33 |
||
|
14952P
|
14952P
MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP6.6-40/55 |
MB113038 |
US $3.97 |
||
|
14952Q
|
14952Q
MF477021 CLIP, FUEL FILLER LID LOCKINGD=5 |
MF477021 |
US $2.05 |
||
|
14974
|
14974
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
14996
|
14996
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
83274ZZ
|
83274ZZ
MD336909 CLIP, INLET MANIFOLD |
MD336909 |
US $3.70 |
||
|
83333
|
83333
MD183519 BRACKET, ENG CONTROL HARNESS CONNECTOR |
MD183519 |
US $5.48 |
||
