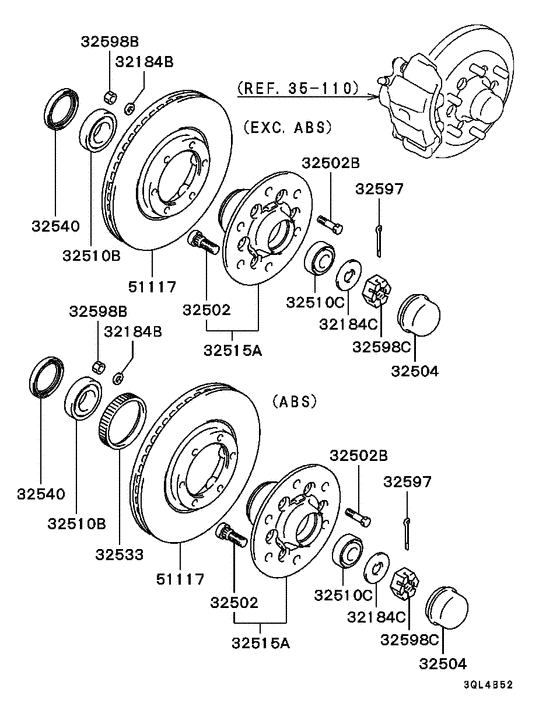

Front axle hub & drum (ALL) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 2001 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(DOUBLE CAB,TURBO,EURO2),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32184B
|
32184B
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.85 |
||
|
32184C
|
32184C
MT141128 WASHER, FR AXLEPlain,20.5 |
MT141128 |
from US $3.80 |
||
|
32502
|
32502
MB301509 BOLT, FR WHEEL HUB |
MB301509 |
from US $1.97 |
||
|
32502B
|
32502B
MB950215 BOLT, FR WHEEL HUB10x51 |
MB950215 |
from US $1.87 |
||
|
32504
|
32504
MT141127 CAP, FR WHEEL HUB |
MT141127 |
from US $3.35 |
||
|
32510B
|
32510B
MB633086 BEARING, FR WHEEL HUBTaper roller,std |
MB633086 |
from US $25.43 |
||
|
32510C
|
32510C
MB633087 BEARING, FR WHEEL HUBTaper roller,std |
MB633087 |
from US $17.18 |
||
|
32515A
|
32515A
MR234841
HUB ASSY,FR WHEEL
|
MR234841 |
— | ||
|
32533
|
32533
MB895818
ROTOR,FR WHEEL HUB ABS
|
MB895818 |
— | ||
|
32540
|
32540
MT141132 OIL SEAL, FR WHEEL HUB |
MT141132 |
from US $4.11 |
||
|
32597
|
32597
MF472088 PIN, FR AXLESplit,4x45 |
MF472088 |
US $1.33 |
||
|
32598B
|
32598B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $1.05 |
||
|
32598C
|
32598C
MT141137 NUT, FR WHEEL HUBSlotted,20 |
MT141137 |
from US $3.55 |
||
|
51117
|
51117
MB950958 DISC,FR BRAKE |
MB950958 |
US $158.79 |
||
|
35 110
|
Front wheel brake
35 110
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
|
35 110
|
Front wheel brake
35 110
|
||||
