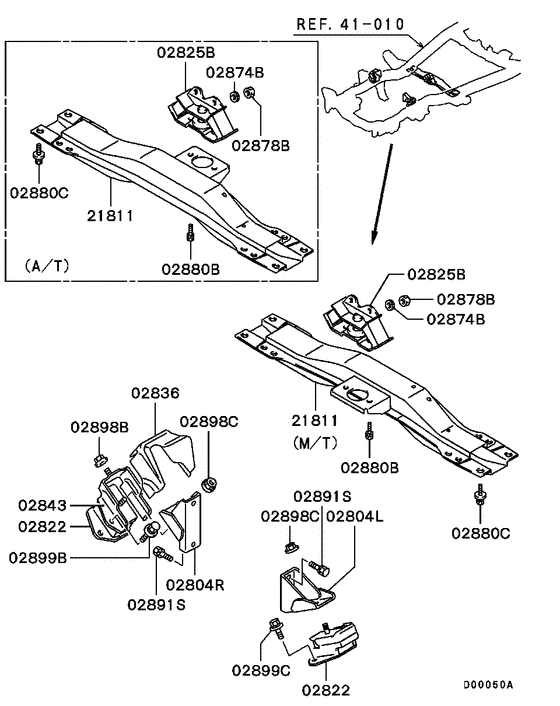

Engine mounting & support (ALL) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 2001 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(DOUBLE CAB,TURBO),4FA/T LHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD078979 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD078979 |
US $34.78 |
||
|
02804R
|
02804R
MD016233 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD016233 |
US $56.24 |
||
|
02822
|
02822
MR151237 CUSHION, CROSSMEMBER ENG MOUNTING |
MR151237 |
from US $72.52 |
||
|
02822
|
02822
MR151342 CUSHION, CROSSMEMBER ENG MOUNTING |
MR151342 |
US $64.98 |
||
|
02822
|
02822
MR961385 CUSHION,CROSSMEMBER ENG MOUNTINGFOR LH |
MR961385 |
from US $49.25 |
||
|
02822
|
02822
MR961386 CUSHION,CROSSMEMBER ENG MOUNTINGFOR RH |
MR961386 |
from US $49.25 |
||
|
02825B
|
02825B
MR133061
CUSHION,ENG RR MOUNTING
|
MR133061 |
— | ||
|
02836
|
02836
MB309603 PROTECTOR, ENG FR MOUNTING HEAT |
MB309603 |
US $10.66 |
||
|
02836
|
02836
MN103438
PROTECTOR,ENG FR MOUNTING HEAT
|
MN103438 |
— | ||
|
02843
|
02843
MR210226 STOPPER, ENG FR MOUNTING CUSHION |
MR210226 |
US $23.94 |
||
|
02874B
|
02874B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.35 |
||
|
02878B
|
02878B
MF430006 NUT10 |
MF430006 |
from US $1.52 |
||
|
02880B
|
02880B
MF240078 BOLT, ENG RR MOUNTINGWasher assembled,10x16 |
MF240078 |
from US $1.01 |
||
|
02880C
|
02880C
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.19 |
||
|
02891S
|
02891S
MS240222 BOLT, ENG MOUNTINGWasher assembled,10x22 |
MS240222 |
US $2.37 |
||
|
02898B
|
02898B
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.66 |
||
|
02898C
|
02898C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.17 |
||
|
02899B
|
02899B
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.07 |
||
|
02899C
|
02899C
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.07 |
||
|
21811
|
21811
MR133050
CROSSMEMBER,T/M MOUNTING
|
MR133050 |
— | ||
|
21811
|
21811
MR133051
CROSSMEMBER,T/M MOUNTING
|
MR133051 |
— | ||
|
41 010
|
Chassis frame
41 010
|
||||
