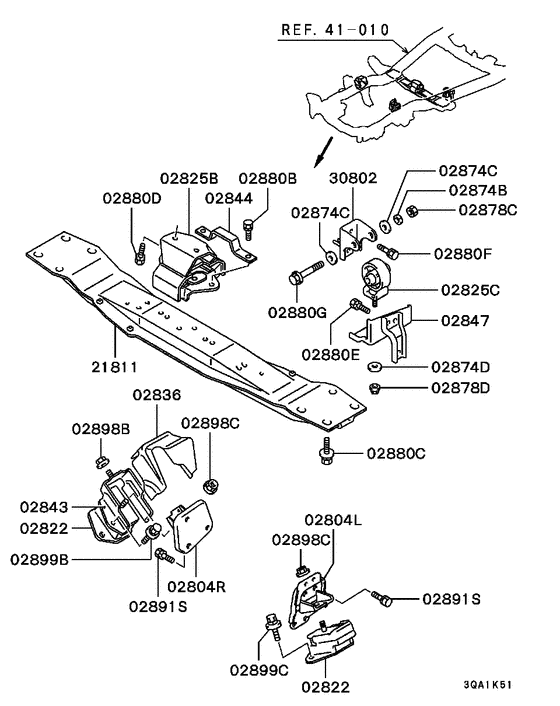

Engine mounting & support (ALL) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(CLUB CAB),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD322806 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD322806 |
US $39.22 |
||
|
02804R
|
02804R
MD308249 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD308249 |
US $36.94 |
||
|
02822
|
02822
MR151238
CUSHION,CROSSMEMBER ENG MOUNTING
|
MR151238 |
— | ||
|
02822
|
02822
MR151348 CUSHION,CROSSMEMBER ENG MOUNTINGW/O STOPPER |
MR151348 |
US $59.71 |
||
|
02825B
|
02825B
MR133069
CUSHION,ENG RR MOUNTING
|
MR133069 |
— | ||
|
02825C
|
02825C
MR210217
CUSHION, ENG RR MOUNTING
|
MR210217 |
— | ||
| replacement | |||||
|
02825C
|
02825C
MR353470 CUSHION, ENG RR MOUNTING |
MR353470 |
from US $34.77 |
||
|
02836
|
02836
MR210277
PROTECTOR,ENG FR MOUNTING HEAT
|
MR210277 |
— | ||
|
02843
|
02843
MB006611 STOPPER, ENG FR MOUNTING CUSHION |
MB006611 |
US $22.94 |
||
|
02844
|
02844
MB581856 STOPPER, ENG RR MOUNTING CUSHION |
MB581856 |
US $13.13 |
||
|
02847
|
02847
MR151580 PLATE, T/M MOUNTING CUSHION SUPPORT |
MR151580 |
US $51.30 |
||
|
02874B
|
02874B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.35 |
||
|
02874C
|
02874C
MB007174 WASHER, ENG SUPPORT RODPlain,10.5 |
MB007174 |
from US $2.07 |
||
|
02874D
|
02874D
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $0.80 |
||
|
02878C
|
02878C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $1.05 |
||
|
02878D
|
02878D
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.17 |
||
|
02880B
|
02880B
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.05 |
||
|
02880C
|
02880C
MF244905 BOLT, ENG RR MOUNTINGWasher assembled,12x25 |
MF244905 |
from US $1.07 |
||
|
02880D
|
02880D
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.19 |
||
|
02880E
|
02880E
MS240090 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MS240090 |
from US $2.11 |
||
|
02880F
|
02880F
MF240078 BOLT, ENG RR MOUNTINGWasher assembled,10x16 |
MF240078 |
from US $1.01 |
||
|
02880G
|
02880G
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.34 |
||
|
02891S
|
02891S
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.86 |
||
|
02898B
|
02898B
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.66 |
||
|
02898C
|
02898C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.17 |
||
|
02899B
|
02899B
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.07 |
||
|
02899C
|
02899C
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.07 |
||
|
21811
|
21811
MB891751 CROSSMEMBER, T/M MOUNTING |
MB891751 |
US $262.66 |
||
|
30802
|
30802
MR133090
BRACKET, T/F MOUNTING
|
MR133090 |
— | ||
|
41 010
|
Chassis frame
41 010
|
||||
