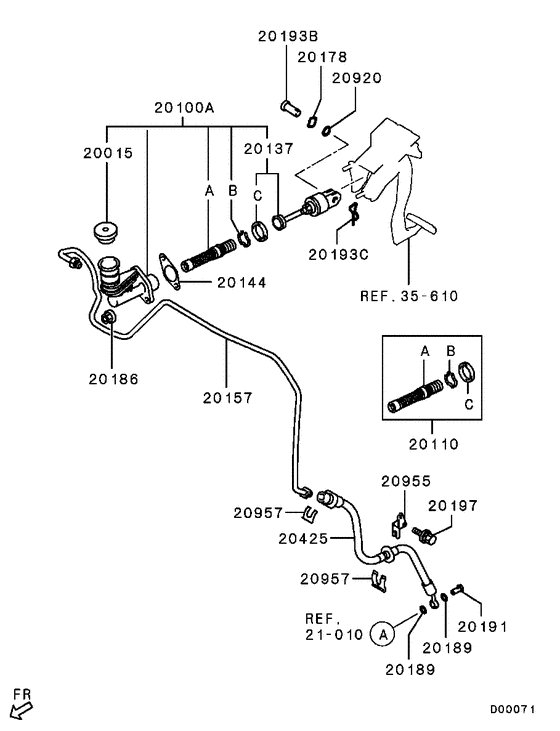

Clutch control Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2007
- Sales region
- Japan
- Note
- LIMITED(NSS4),5FM/T
- transmission
- 5FM/T
- grade
- LIMITED
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $6.51 |
||
|
20100A
|
20100A
MR374859 CYLINDER ASSY, CLUTCH MASTER |
MR374859 |
from US $158.36 |
||
|
20110
|
20110
MR589004 CYLINDER KIT, CLUTCH MASTER |
MR589004 |
from US $23.91 |
||
|
20137
|
20137
MR333020 PUSH ROD, CLUTCH M/CYL |
MR333020 |
US $41.44 |
||
|
20144
|
20144
MB555016 SEAL, CLUTCH M/CYL |
MB555016 |
US $3.56 |
||
|
20157
|
20157
MR418462 TUBE, CLUTCH M/CYL |
MR418462 |
US $23.68 |
||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.66 |
||
|
20189
|
20189
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.03 |
||
|
20191
|
20191
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $4.33 |
||
|
20193B
|
20193B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $3.02 |
||
|
20193C
|
20193C
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
US $2.05 |
||
|
20197
|
20197
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.68 |
||
|
20425
|
20425
MR418465 HOSE, CLUTCH RELEASE CYLINDER |
MR418465 |
US $32.83 |
||
|
20920
|
20920
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.99 |
||
|
20955
|
20955
MR418686 BRACKET, CLUTCH FLUID LINE |
MR418686 |
US $12.28 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.54 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
35 610
|
Brake & clutch pedal
35 610
|
||||
