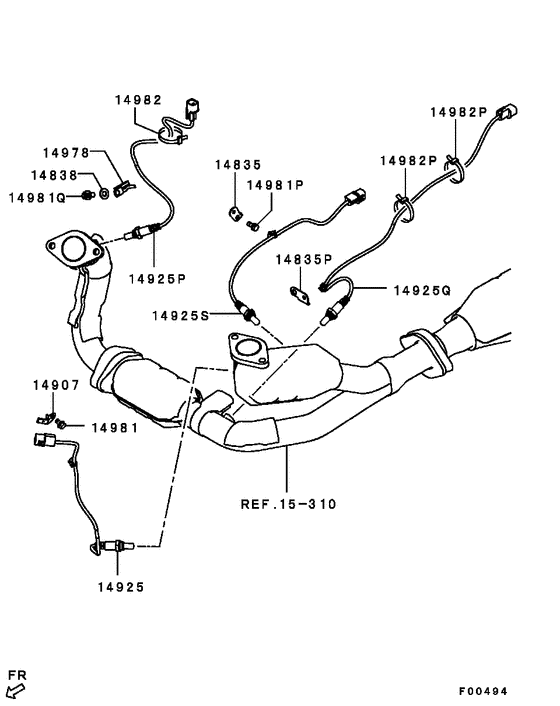

Electrical control (M/T (OXYGEN SENSOR ETC.)) Diagram Mitsubishi PAJERO/MONTERO
- Year
- 2007
- Sales region
- Japan
- Note
- LIMITED(NSS4),5FM/T
- transmission
- 5FM/T
- grade
- LIMITED
- body
- LONG WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14835
|
14835
MD365963 BRACKET, OXYGEN SENSOR CABLE |
MD365963 |
US $3.55 |
||
|
14835P
|
14835P
8558A406 BRACKET, OXYGEN SENSOR CABLE |
8558A406 |
US $3.55 |
||
|
14838
|
14838
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $0.80 |
||
|
14907
|
14907
MD338149 BRACKET, OXYGEN SENSOR CONNECTOR |
MD338149 |
US $6.66 |
||
|
14925
|
14925
MD369190 SENSOR, ENG CONTROL OXYGEN |
MD369190 |
from US $364.38 |
||
|
14925P
|
14925P
MD365014 SENSOR, ENG CONTROL OXYGEN |
MD365014 |
US $455.62 |
||
|
14925Q
|
14925Q
1588A110 SENSOR, ENG CONTROL OXYGEN |
1588A110 |
from US $422.24 |
||
|
14925S
|
14925S
MR578114 SENSOR, ENG CONTROL OXYGEN |
MR578114 |
from US $311.39 |
||
|
14978
|
14978
1588A170 CLIP, OXYGEN SENSOR |
1588A170 |
US $3.70 |
||
|
14981
|
14981
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.29 |
||
|
14981P
|
14981P
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.68 |
||
|
14981Q
|
14981Q
MF140056 BOLT, ENG BREATHERFlange,10x16 |
MF140056 |
from US $1.13 |
||
|
14981Q
|
14981Q
MF140057 BOLT, INLET MANIFOLDFlange,10x18 |
MF140057 |
US $3.28 |
||
|
14982
|
14982
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
14982P
|
14982P
MD129756 CLAMP, A/T CONTROL EQUIP |
MD129756 |
US $3.40 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
