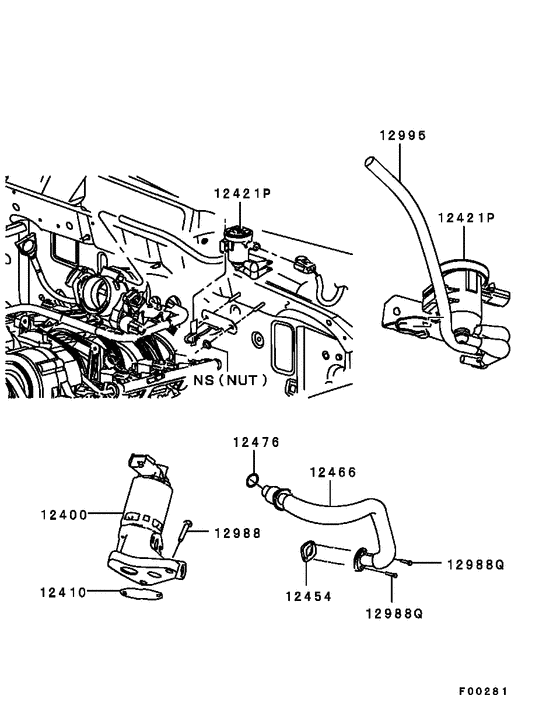

Emission control (0802.1-) Diagram Mitsubishi RAIDER
- Year
- 2006 - 2008
- Sales region
- MMNA/CHRYSLER
- Note
- 3.7L(V6)/LS/2WD/EXTENDED-CAB,4AT FED
- drive
- 2WD/2WD
- grade
- LS/EXTENDED-CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
53032948AD
VALVE,EGR
|
53032948AD |
— | ||
|
12400
|
12400
53034192AA
VALVE,EGR
|
53034192AA |
— | ||
|
12410
|
12410
53034006AA
GASKET,EGR VALVE
|
53034006AA |
— | ||
|
12410
|
12410
53034006AB
GASKET,EGR VALVE
|
53034006AB |
— | ||
|
12421P
|
12421P
04669940AB
VALVE,EMISSION SOLENOID
|
04669940AB |
— | ||
|
12421P
|
12421P
04891731AA
VALVE,EMISSION SOLENOID
|
04891731AA |
— | ||
|
12454
|
12454
05277928
GASKET,EGR PIPE
|
05277928 |
— | ||
|
12466
|
12466
53032951AB
PIPE,EGR VALVE
|
53032951AB |
— | ||
|
12476
|
12476
04591250
SEAL RING,EGR VALVE
|
04591250 |
— | ||
|
12988
|
12988
06508380AA
BOLT,EGR EQUIP
|
06508380AA |
— | ||
|
12988
|
12988
06509063AA
BOLT,EGR EQUIP
|
06509063AA |
— | ||
|
12988Q
|
12988Q
06104158AA
BOLT,EGR EQUIP
|
06104158AA |
— | ||
|
12988Q
|
12988Q
06502555
BOLT,EGR EQUIP
|
06502555 |
— | ||
|
12995
|
12995
52013246AA
HOSE,EMISSION SOLENOID VALVE
|
52013246AA |
— | ||
|
12995
|
12995
52855741AB
HOSE,EMISSION SOLENOID VALVE
|
52855741AB |
— | ||
|
12995
|
12995
52855741AC
HOSE,EMISSION SOLENOID VALVE
|
52855741AC |
— |
