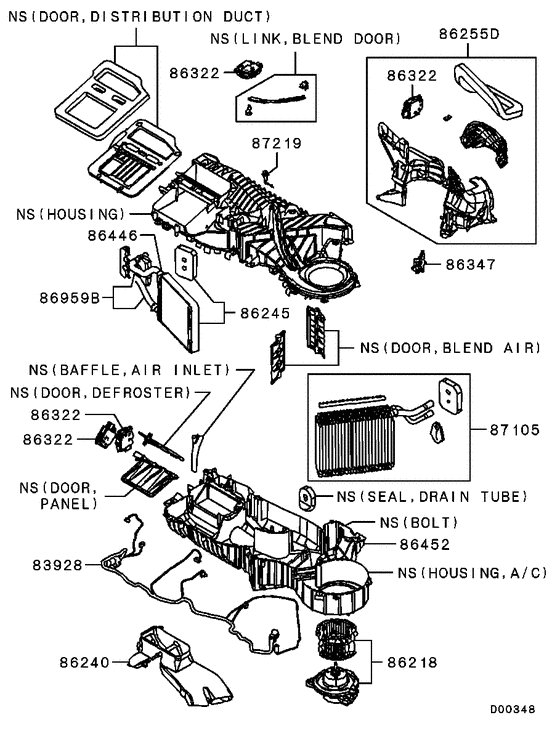

Heater unit & piping (HEATER UNIT 0802.1-) Diagram Mitsubishi RAIDER
- Year
- 2006 - 2008
- Sales region
- MMNA/CHRYSLER
- Note
- 3.7L(V6)/LS/2WD/EXTENDED-CAB,4AT FED
- drive
- 2WD/2WD
- grade
- LS/EXTENDED-CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83928
|
83928
05161369AA
HARNESS,HEATER
|
05161369AA |
— | ||
|
83928
|
83928
05189097AA
HARNESS,HEATER
|
05189097AA |
— | ||
|
86218
|
86218
05161007AA
FAN & MOTOR KIT,HEATER
|
05161007AA |
— | ||
|
86218
|
86218
05161007AB
FAN & MOTOR KIT,HEATER
|
05161007AB |
— | ||
|
86218
|
86218
05189092AA
FAN & MOTOR KIT,HEATER
|
05189092AA |
— | ||
|
86240
|
86240
05161070AA
DUCT,FLOOR CONSOLE HEATER,FR
|
05161070AA |
— | ||
|
86245
|
86245
05161084AA
CORE,HEATER
|
05161084AA |
— | ||
|
86245
|
86245
05161084AB
CORE,HEATER
|
05161084AB |
— | ||
|
86255D
|
86255D
05161066AA
CASE,HEATER
|
05161066AA |
— | ||
|
86255D
|
86255D
05161066AB
CASE,HEATER
|
05161066AB |
— | ||
|
86322
|
86322
05061099AA
MOTOR,HEATER CONTROL
|
05061099AA |
— | ||
|
86322
|
86322
68033337AA
MOTOR,HEATER CONTROL
|
68033337AA |
— | ||
|
86347
|
86347
05161067AA
RESISTOR,HEATER
|
05161067AA |
— | ||
|
86347
|
86347
05161067AB
RESISTOR,HEATER
|
05161067AB |
— | ||
|
86446
|
86446
05061488AA
CLIP,HEATER
|
05061488AA |
— | ||
|
86446
|
86446
68031980AA
CLIP,HEATER
|
68031980AA |
— | ||
|
86452
|
86452
06506234AA
BOLT,HEATER
|
06506234AA |
— | ||
|
86959B
|
86959B
05161085AA
TUBE,HEATER PIPING
|
05161085AA |
— | ||
|
86959B
|
86959B
05161085AB
TUBE,HEATER PIPING
|
05161085AB |
— | ||
|
87105
|
87105
05161083AA
EVAPORATOR,A/C
|
05161083AA |
— | ||
|
87219
|
87219
05061096AA
THERMISTOR,A/C EVAPORATOR AIR OUTLET
|
05061096AA |
— | ||
|
87219
|
87219
68040532AA
THERMISTOR,A/C EVAPORATOR AIR OUTLET
|
68040532AA |
— |
