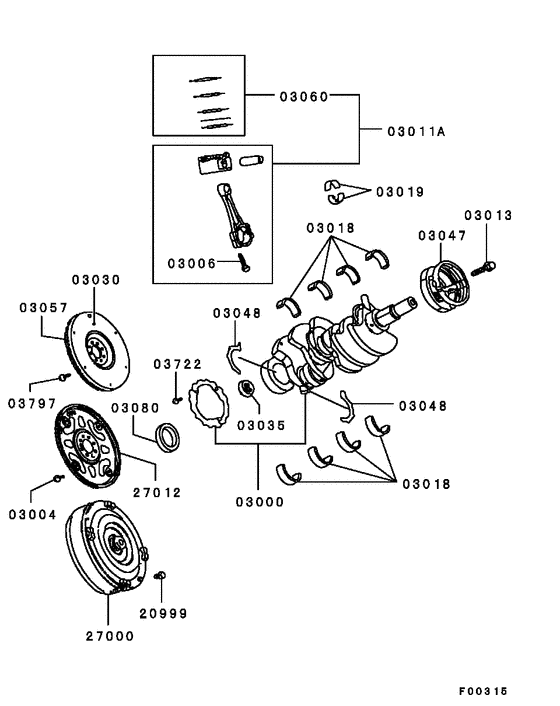

Piston & crankshaft (0610.1-0801.3 3.7L) Diagram Mitsubishi RAIDER
- Year
- 2006 - 2008
- Sales region
- MMNA/CHRYSLER
- Note
- 3.7L(V6)/LS/2WD/EXTENDED-CAB,4AT FED
- drive
- 2WD/2WD
- grade
- LS/EXTENDED-CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
53020959AB
CRANKSHAFT
|
53020959AB |
— | ||
|
03004
|
03004
06503465
BOLT,A/T DRIVE PLATE
|
06503465 |
— | ||
|
03006
|
03006
06503928
BOLT,CONNROD
|
06503928 |
— | ||
|
03011A
|
03011A
05019316AA
PISTON & CONNECTING ROD ASSY
|
05019316AA |
— | ||
|
03011A
|
03011A
05019316AB
PISTON & CONNECTING ROD ASSY
|
05019316AB |
— | ||
|
03013
|
03013
06504415
CENTER BOLT,CRANKSHAFT PULLEY
|
06504415 |
— | ||
|
03018
|
03018
05066733AB
Bearing,crankshaft
|
05066733AB |
— | ||
|
03018
|
03018
05066734AB
Bearing,crankshaft
|
05066734AB |
— | ||
|
03018
|
03018
05066735AB
Bearing,crankshaft
|
05066735AB |
— | ||
|
03018
|
03018
05066736AB
Bearing,crankshaft
|
05066736AB |
— | ||
|
03018
|
03018
05066737AB
Bearing,crankshaft
|
05066737AB |
— | ||
|
03018
|
03018
05066738AB
Bearing,crankshaft
|
05066738AB |
— | ||
|
03018
|
03018
05066739AB
Bearing,crankshaft
|
05066739AB |
— | ||
|
03018
|
03018
05066740AB
Bearing,crankshaft
|
05066740AB |
— | ||
|
03019
|
03019
05019447AA
BEARING,CONNROD
|
05019447AA |
— | ||
|
03035
|
03035
04736483AA
BEARING,FLYWHEEL DRIVE PINION
|
04736483AA |
— | ||
|
03047
|
03047
53020689AB
PULLEY,CRANKSHAFT
|
53020689AB |
— | ||
|
03048
|
03048
05012356AC
THRUST BEARING SET,CRANKSHAFT
|
05012356AC |
— | ||
|
03048
|
03048
05012356AD
THRUST BEARING SET,CRANKSHAFT
|
05012356AD |
— | ||
|
03060
|
03060
05012364AD
RING SET,PISTON
|
05012364AD |
— | ||
|
03060
|
03060
05012364AE
RING SET,PISTON
|
05012364AE |
— | ||
|
03080
|
03080
53020788AB
OIL SEAL,CRANKSHAFT,RR
|
53020788AB |
— | ||
|
03722
|
03722
06504480
SCREW,CRANKSHAFT
|
06504480 |
— | ||
|
03797
|
03797
06503465
BOLT,A/T DRIVE PLATE
|
06503465 |
— | ||
|
03797
|
03797
06507503AA
BOLT,FLYWHEEL
|
06507503AA |
— | ||
|
20999
|
20999
06036385AA
BOLT,T/M CONNECTING
|
06036385AA |
— | ||
|
20999
|
20999
06504383
BOLT,T/M CONNECTING
|
06504383 |
— | ||
|
27000
|
27000
05175001AA
TORQUE CONVERTER,A/T
|
05175001AA |
— | ||
|
27012
|
27012
04736253AA
PLATE,A/T DRIVE
|
04736253AA |
— |
