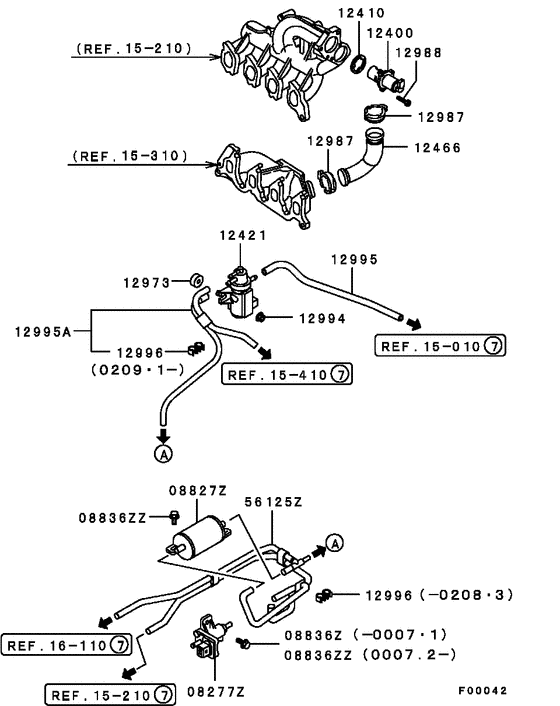

Emission control (ALL) Diagram Mitsubishi SPACE STAR
- Year
- 2002 - 2004
- Sales region
- EUR/NEDCAR
- Note
- SPORT(HIGH POWER),5FM/T RHD
- transmission
- 5FM/T
- grade
- SPORT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08277Z
|
08277Z
M616657
VALVE,ENG SPEED CONTROL SOLENOID
|
M616657 |
— | ||
|
08827Z
|
08827Z
M616662
VACUUM TANK,THROTTLE CONTROL
|
M616662 |
— | ||
|
08836Z
|
08836Z
MW30618655
BOLT,THROTTLE CONTROL EQUIP
|
MW30618655 |
— | ||
|
08836ZZ
|
08836ZZ
MW30620717
BOLT,EGR EQUIP
|
MW30620717 |
— | ||
|
12400
|
12400
M616666
VALVE,EGR
|
M616666 |
— | ||
|
12400
|
12400
MW30638635
VALVE,EGR
|
MW30638635 |
— | ||
|
12400
|
12400
MW30662336
VALVE,EGR
|
MW30662336 |
— | ||
|
12400
|
12400
MW30662345
VALVE,EGR
|
MW30662345 |
— | ||
|
12400
|
12400
MW30670108
VALVE,EGR
|
MW30670108 |
— | ||
|
12410
|
12410
MW30621283
GASKET,EGR VALVE
|
MW30621283 |
— | ||
|
12421
|
12421
M618057
VALVE,EMISSION SOLENOID
|
M618057 |
— | ||
|
12466
|
12466
M616659
PIPE,EGR VALVE
|
M616659 |
— | ||
|
12973
|
12973
MR914440
GROMMET,EMISSION CONTROL EQUIP
|
MR914440 |
— | ||
|
12973
|
12973
MW9447174
GROMMET,EMISSION CONTROL EQUIP
|
MW9447174 |
— | ||
|
12987
|
12987
MW30620718
CLAMP,EGR EQUIP
|
MW30620718 |
— | ||
|
12988
|
12988
MW30620717
BOLT,EGR EQUIP
|
MW30620717 |
— | ||
|
12994
|
12994
MW30618466
NUT,EMISSION SOLENOID VALVE
|
MW30618466 |
— | ||
|
12995
|
12995
MR912817
HOSE,EMISSION SOLENOID VALVE
|
MR912817 |
— | ||
|
12995A
|
12995A
MR912818
HOSE ASSY,EMISSION SOLENOID VALVE
|
MR912818 |
— | ||
|
12995A
|
12995A
MR915461
HOSE ASSY,EMISSION SOLENOID VALVE
|
MR915461 |
— | ||
|
12996
|
12996
M618373
CLIP,EMISSION SOLENOID VALVE
|
M618373 |
— | ||
|
56125Z
|
56125Z
MW30621280
HOSE,VACUUM TANK
|
MW30621280 |
— | ||
|
56125Z
|
56125Z
MW30623436
HOSE,VACUUM TANK
|
MW30623436 |
— | ||
|
